Regin

5 Nm, 10 Nm, 20 Nm, 35 Nm

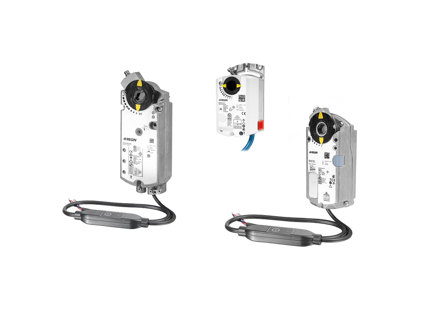

Damper acutators with Modbus RTU communication and without springreturn, 5 Nm, 10 Nm, 20 Nm, 35 Nm

Specifikationer
Mjukvara & dokumentation

Artiklar

(4 st)
  • RDAS5-24C - Regin
    RDAS5-24C
    Supply voltage
    24 V AC/DC
    Power consumption
    2 VA (1 W - Running / 0.5 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    Modbus RTU
    Feedback signal
    Modbus RTU
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²
    Termination RS485
    120 Ω electronically switchable
  • RDAS10-24C - Regin
    RDAS10-24C
    Supply voltage
    24 V AC/DC
    Power consumption
    2.2 VA (1.3 W - Running / 0.5 W - Holding)
    Cable length
    0.9 m
    Torque
    10 Nm
    Control signal
    Modbus RTU
    Feedback signal
    Modbus RTU
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    1.6 m²
    Termination RS485
    120 Ω electronically switchable
  • RDAS20-24C - Regin
    RDAS20-24C
    Supply voltage
    24 V AC/DC
    Power consumption
    2.3 VA (1.1W - Running / 0.5W - Holding)
    Cable length
    0.9 m
    Torque
    20 Nm
    Control signal
    Modbus RTU
    Feedback signal
    Modbus RTU
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…20.5 mm
    Damper shaft, square
    8…14.5 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    4 m²
    Termination RS485
    120 Ω electronically switchable
  • RDAS35-24C - Regin
    RDAS35-24C
    Supply voltage
    24 V AC
    Power consumption
    8 VA (8 W)
    Cable length
    0.9 m
    Torque
    35 Nm
    Control signal
    Modbus RTU
    Feedback signal
    Modbus RTU
    Running time, actuator
    125 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…25.6 mm
    Damper shaft, square
    6…18 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    6 m²
    Termination RS485
    120 Ω electronically switchable

Specifikationer

Specifikationer för 5 Nm, 10 Nm, 20 Nm, 35 Nm
Appliance class Class III
Protection class IP54
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -32…70 °C
Cable nominal cross section 0.75 mm²
Cable length extension, maximum 300 m
Working angle, rotation 90 °
