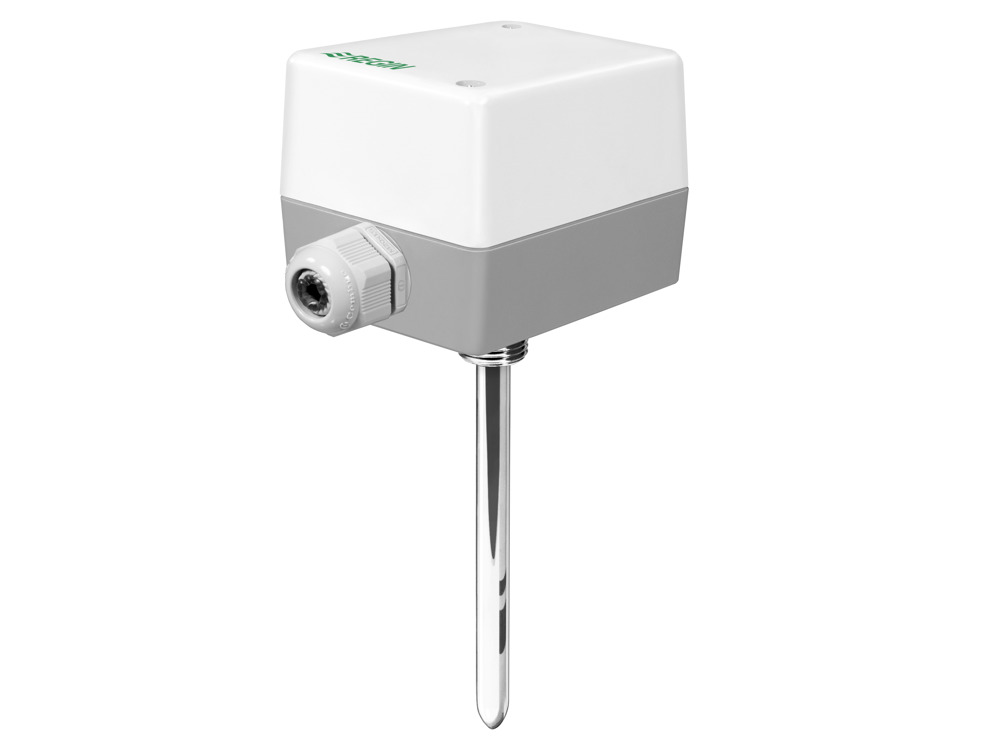

MTIBL90H Boiler thermostat
High-quality electromechanical thermostats for use in cooling, heating, ventilation and boiler systems.
Specifications
| Setpoint value, temperature range | 0...90 °C |
|---|---|
| Hysteresis, temperature | 4±1 K |
| Max. probe temperature | 120 °C |
| Setpoint adjustment | Internal |
| Sensor element | Liquid-filled copper capillary |
|---|---|
| Electrical contact | Dust-tight microswitches with SPDT contacts (heat/cool) |
| Switching capacity | 16 (6) A, 24...250 V AC |
| Appliance class | Class I |
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | -35…65 °C |
| Dimensions, external (WxHxD) | 108x72x70 mm |
| Weight, incl. packaging | 0.56 kg |
| Material, housing | Bayblend® base, ABS cover |
Software & documentation
Product sheets
Instructions
Product declarations
Accessories
Regin
DR-31/14
Stainless steel pocket AISI 304, 120 mm, ø external 9 mm, ø internal 7 mm, connection R 1/2"
- Tube length
- 120 mm
- Total well length
- 148 mm
- External tube diameter
- 9 mm
- Tube length
- 108 mm
- Total well length
- 128 mm
- External tube diameter
- 16 mm
- Tube length
- 120 mm
- Total well length
- 140 mm
- External tube diameter
- 8 mm
Regin
DR-41/14
Stainless steel pocket AISI 304 pocket, 120 mm, Ø external 16 mm, Ø internal 15 mm, connection R 1/2”
- Tube length
- 120 mm
- Total well length
- 148 mm
- External tube diameter
- 16 mm
