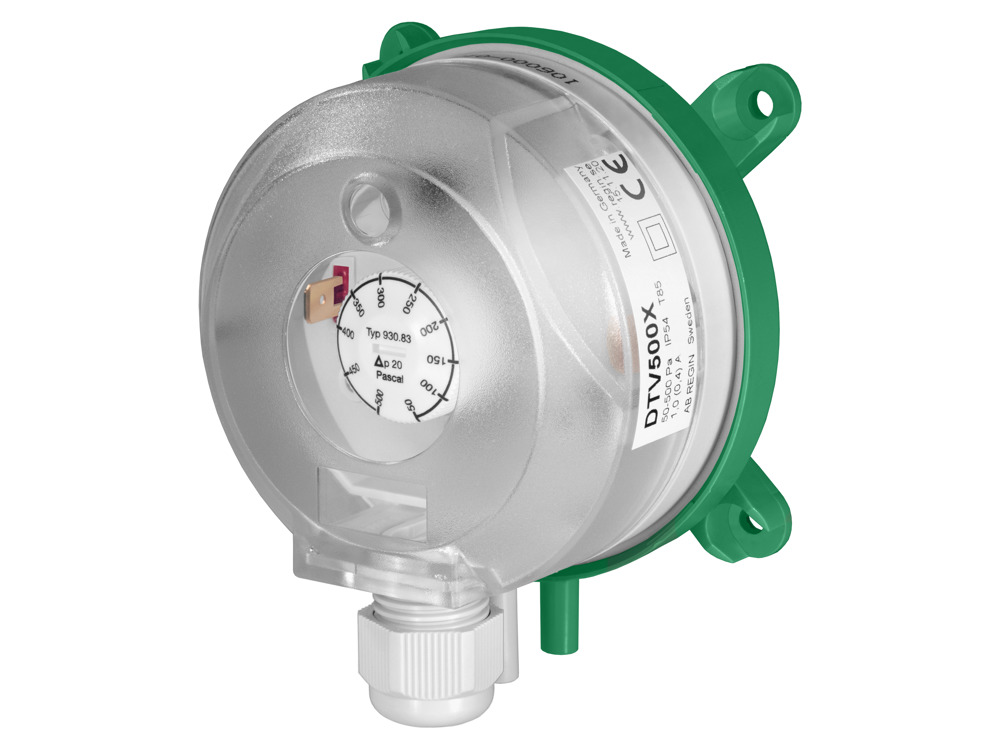

Differential pressure switch for air and non-corrosive gases
Differential pressure switch for supervising air handling units, fans, filters or to control defrosting functions.
Articles
(5 st)-
DTV300X- Relay
- NO/NC
- Switch capacity
- Over 1000 000 switching operations
- Pressure, range sensor
- 20…300 Pa
- Max. allowed diff. Pressure sensor 1
- 10 kPa
- Hysteresis
- 10 Pa ± 15 % Pa
-
DTV500X
- Relay
- NO/NC
- Switch capacity
- Over 1000 000 switching operations
- Pressure, range sensor
- 50…500 Pa
- Max. allowed diff. Pressure sensor 1
- 10 kPa
- Hysteresis
- 20 Pa ± 15 % Pa
-
DTV1000X
- Relay
- NO/NC
- Switch capacity
- Over 1000 000 switching operations
- Pressure, range sensor
- 200…1000 Pa
- Max. allowed diff. Pressure sensor 1
- 10 kPa
- Hysteresis
- 100 Pa ± 15 % Pa
-
DTV2500X
- Relay
- NO/NC
- Switch capacity
- Over 1000 000 switching operations
- Pressure, range sensor
- 500…2500 Pa
- Max. allowed diff. Pressure sensor 1
- 10 kPa
- Hysteresis
- 150 Pa ± 15 % Pa
-
DTV5000X
- Relay
- NO/NC
- Switch capacity
- Over 1000 000 switching operations
- Pressure, range sensor
- 1000…5000 Pa
- Max. allowed diff. Pressure sensor 1
- 10 kPa
- Hysteresis
- 250 Pa ± 15 % Pa
Specifications
| Protection class | IP54 |
|---|---|
| Ambient temperature | -20…85 °C |
| Storage temperature | -40…85 °C |
| Weight, incl. packaging | 0.17 kg |
| Media | Air and non-corrosive gases |
| Max. switching load | 1.5A (0,4A), 1,5 A (0,4 A) |
| Material, housing | Polystyrene |
| Material sensor | Silicone membrane |
