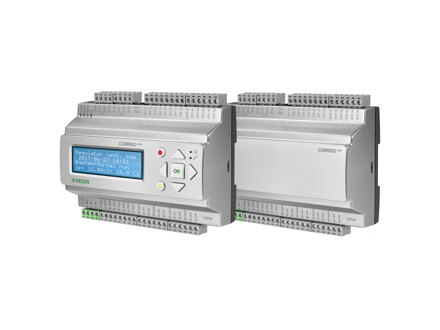

Corrigo Ardo - configurable controllers for heating only

Corrigo preloaded with application for control of heating.

Artikelen

(1 st)

Specificaties voor Corrigo Ardo - configurable controllers for heating only
Supply voltage	24 V AC ± 15 %, 50...60 Hz or 21...36 V DC, 24 V AC ±15 %, 50...60 Hz or 20...36 V DC
Power consumption	8 VA, 4 W (DC), model E...W-3: 12 VA, 6 W (DC), 5 VA, 3 W (DC) WEB models: 9 VA, 5 W (DC)
Ambient temperature	0...50°C
Storage temperature	-20…+70°C, -40...+50°C
Ambient humidity	Max. 90 % RH
Protection class	IP20
Connection	Disconnectable terminal strips, 4 mm 2
Memory backup	Built-in long life battery gives long backup time of all settings incl. real time, Built-in long-life battery with long time back-up of all settings
Display	Backlit LCD (blue), 4 rows of 20 characters, Backlit, LCD, 4 rows of 20 characters
Dimensions (WxHxD)	149 x 121 x 60mm, 148 x 123 x 58mm
Ethernet	Webserver, EXOline, Modbus, BACnet/IP, CLOUDigo
M-Bus ports	M-Bus communication
Analogue inputs (AI)	For PT1000 sensors (accuracy ± 0.4°C) or 0...10 V DC (accuracy ± 0.15 % of full output signal). 12 bit resolution in the A/D conversion., For a PT1000 sensor or 0...10 V DC
Digital inputs (DI)	For potential-free contacts
Analogue outputs (AO)	0...10 V DC, 1 mA, short-circuit proof
Digital outputs (DO)	Mosfet outputs, 24 V AC or DC, 2 A continuous. Max. 8 A in total., Mosfet 2 A each, max. 8 A total, 24 V AC or DC
Mounting	DIN-rail or cabinet, DIN-rail
Number of modules	8.5
RS485	EXOline, Modbus, BACnet MS/TP
Communication	RS485, EXOline (free protocol) and Modbus as standard. LON and TCP/IP as options.
