Wells and mounting brackets for thermostats

Articles

•
  DR-01

  Brass pocket 120mm, Ø external 11 mm, Ø internal 10 mm, connection R 1/2”

  Tube length

  120 mm

  Total well length

  140 mm

  External tube diameter

  11 mm

  Internal tube diameter

  10 mm

  Connection

  R 1/2"

  Well material

  Brass / Cu-Ni

  Fixing stopper for capillary

  Yes

•
  DR-02

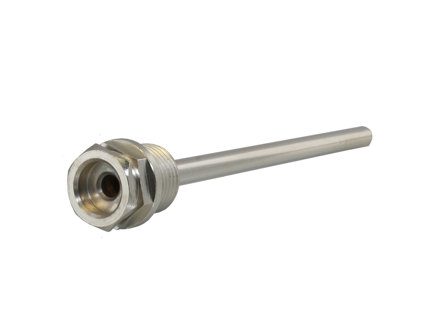

  Stainless steel pocket AISI 304, 120 mm, Ø external 12 mm, Ø internal 10 mm, connection R 1/2”

  Tube length

  120 mm

  Total well length

  148 mm

  External tube diameter

  12 mm

  Internal tube diameter

  10 mm

  Connection

  R 1/2"

  Well material

  Stainless steel (AISI 304)

  Fixing stopper for capillary

  Yes

•
  DR-05

  Set of mounting brackets for capillary fixing

  Fixing stopper for capillary

  Set of 6 mounting plastic brackets

•
  DR-16

  Brass pocket 120mm, Ø external 10 mm, Ø internal 8,5 mm, connection R 1/2”

  Tube length

  120 mm

  Total well length

  140 mm

  External tube diameter

  10 mm

  Internal tube diameter

  8.5 mm

  Connection

  R 1/2"

  Well material

  Brass / Cu-Ni

  Fixing stopper for capillary

  Yes

•
  DR-17

  Stainless steel pocket AISI 304, 120 mm, Ø external 10mm, Ø internal 8,5 mm, connection R 1/2”

  Tube length

  120 mm

  Total well length

  148 mm

  External tube diameter

  10 mm

  Internal tube diameter

  8.5 mm

  Connection

  R 1/2"

  Well material

  Stainless steel (AISI 304)

  Fixing stopper for capillary

  Yes

•
  DR-16/14

  Brass immersion well, 120 mm. Suitable for MTIB60, MTIB90 and MTIB120.

  Tube length

  120 mm

  Total well length

  140 mm

  External tube diameter

  10 mm

  Internal tube diameter

  8.5 mm

  Connection

  R 1/2"

  Well material

  Brass / Cu-Ni

  Fixing stopper for capillary

  No

•
  DR-17/14

  Stainless steel EN 1.4301 immersion well, 120 mm. Suitable for MTIB60, MTIB90 and MTIB120.

  Tube length

  120 mm

  Total well length

  148 mm

  External tube diameter

  10 mm

  Internal tube diameter

  8.5 mm

  Connection

  R 1/2"

  Well material

  Stainless steel (AISI 304)

  Fixing stopper for capillary

  No

•
  DR-25

  Spiral protection bracket for capillary

  Fixing stopper for capillary

  Spiral protection bracket

•
  DR-31/14

  Stainless steel pocket AISI 304, 120 mm, ø external 9 mm, ø internal 7 mm, connection R 1/2"

  Tube length

  120 mm

  Total well length

  148 mm

  External tube diameter

  9 mm

  Internal tube diameter

  7 mm

  Connection

  R 1/2"

  Well material

  Stainless steel EN 1.4301

  Fixing stopper for capillary

  Yes

•
  DR-40/14

  Brass pocket 108 mm, Ø external 16 mm, Ø internal 15 mm, connection R 1/2”

  Tube length

  108 mm

  Total well length

  128 mm

  External tube diameter

  16 mm

  Internal tube diameter

  15 mm

  Connection

  R 1/2"

  Well material

  Brass / Cu-Ni

  Fixing stopper for capillary

  Yes
