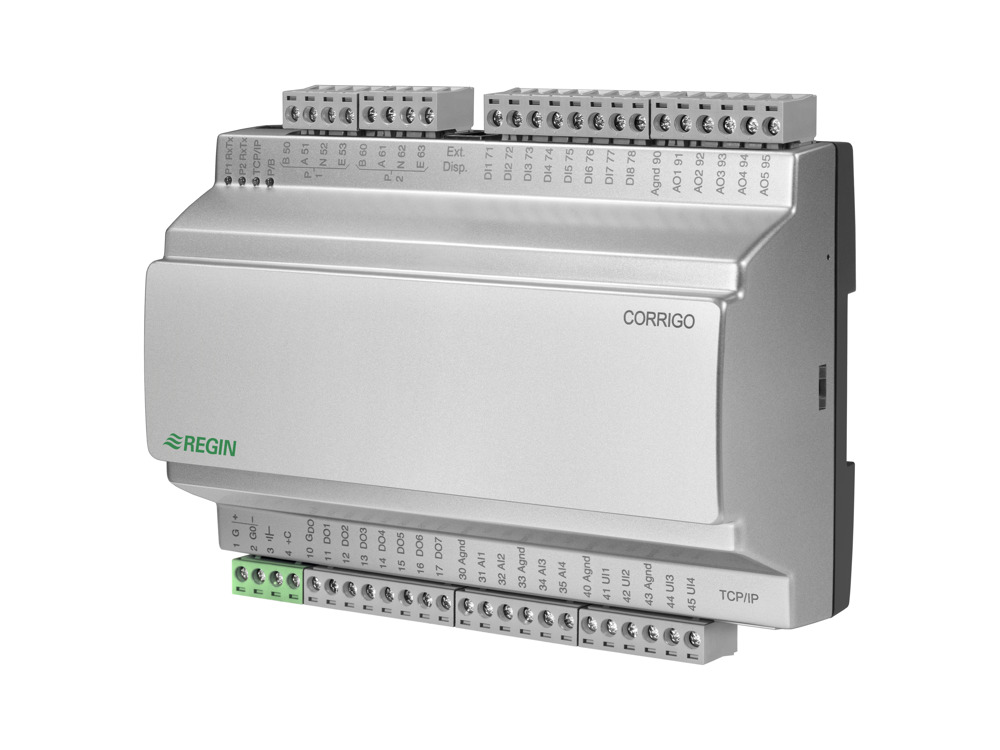

E283W-3 Corrigo Ardo - configurable controllers for heating only

This article is discontinued

Corrigo preloaded with application for control of heating.

Software & documentation

Specifications

Specifications for E283W-3
Inputs	16
Outputs	12
Communication ports	3

Specifications for Corrigo Ardo - configurable controllers for heating only
Supply voltage	24 V AC ± 15 %, 50...60 Hz or 21...36 V DC
Power consumption	8 VA, 4 W (DC), model E...W-3: 12 VA, 6 W (DC)
Ambient temperature	0...50°C
Storage temperature	-20…+70°C
Ambient humidity	Max. 90 % RH
Protection class	IP20
Connection	Disconnectable terminal strips, 4 mm 2
Memory backup	Built-in long life battery gives long backup time of all settings incl. real time
Display	Backlit LCD (blue), 4 rows of 20 characters
Mounting	DIN-rail or cabinet
Number of modules	8.5
Dimensions (WxHxD)	149 x 121 x 60mm
Ethernet	Webserver, EXOline, Modbus, BACnet/IP, CLOUDigo
RS485	EXOline, Modbus, BACnet MS/TP
M-Bus ports	M-Bus communication
Analogue inputs (AI)	For PT1000 sensors (accuracy ± 0.4°C) or 0...10 V DC (accuracy ± 0.15 % of full output signal). 12 bit resolution in the A/D conversion.
Digital inputs (DI)	For potential-free contacts
Analogue outputs (AO)	0...10 V DC, 1 mA, short-circuit proof
Digital outputs (DO)	Mosfet outputs, 24 V AC or DC, 2 A continuous. Max. 8 A in total.
