Regin

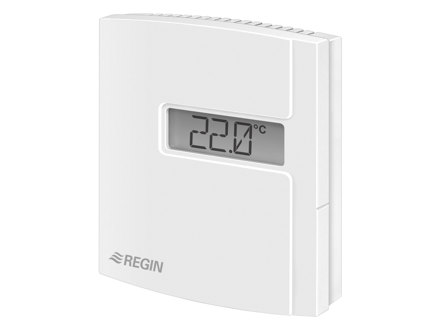

TRTC5-D Temperature transmitter for Modbus communication, room mounting, IP30
Temperature transmitter with display
Specifications
| Mounting | Wall |
|---|---|
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.0 VA |
| Dimensions, external (WxHxD) | 100x85x30 mm |
| Display | Yes |
| Supported protocols | Modbus |
| Measuring range, temp | 0…50 °C |
| Output temperature | Modbus |
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -25…60 °C |
| Mounting | Room |
| Accuracy, temperature | ±0.4°C at 20 °C K |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Colour, housing | Signal white RAL 9003 |
