Regin

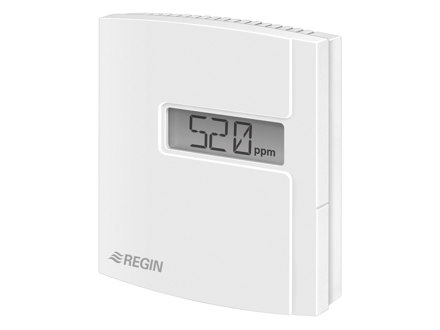

CTRTA-D CO 2 and temperature transmitter, room mounting
CO2 and temperature transmitter with display
Specifications
| Accuracy, temperature | ± 0.4 °C (0…10 V), ± 0.3 °C (PT1000) |
|---|---|
| Output, temperature | 0…10 V DC + PT1000 |
| Output, CO 2 | 0...10 V DC |
| Display | Yes |
| Supply voltage | 24 V AC/DC (22…26 V AC / 15…35 V DC) |
|---|---|
| Working range, CO 2 | 0…2000ppm |
| Accuracy, CO 2 | < ± (50 ppm + 2 % of the measured value) |
| Working range, temperature | 0…50°C |
| Power consumption | < 2.5 W |
| Energy consumption | < 0.5 Wh |
| Transformer power | ≥ 5 VA |
| Mounting | Room |
| Dimensions | 100 x 85 x 30.5mm |
| Protection class | IP30 |
