Regin

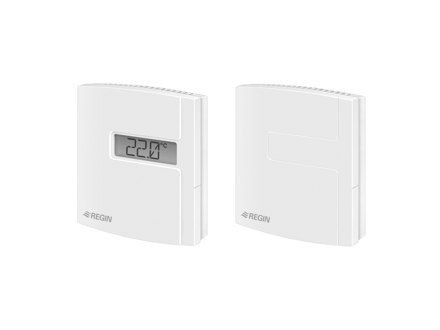

CO2 and temperature transmitter for Modbus communication, room mounting
Transmitters for wall mounting with or without display.
Articles
(2 st)-
CTRCCO2 + °C- Supported protocols
- Modbus
- Measuring range, temp
- 0…50 °C
- Output temperature
- Modbus
- Output signal, gas in air
- Modbus
- Accuracy, gas in air
- < ± (50 ppm + 2 % of the measured value)
- Warm-up time
- < 5 min
- Temperature dependance
- Typically 5 ppm / K
-
CTRC-DCO2 + °C
- Display
- Yes
- Supported protocols
- Modbus
- Measuring range, temp
- 0…50 °C
- Output temperature
- Modbus
- Output signal, gas in air
- Modbus
- Accuracy, gas in air
- < ± (50 ppm + 2 % of the measured value)
- Warm-up time
- < 5 min
- Temperature dependance
- Typically 5 ppm / K
Specifications
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.5 VA |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -25…60 °C |
| Mounting | Room |
| Dimensions, external (WxHxD) | 100x85x30 mm |
| Accuracy, temperature 1 | ±0.2 °K @ 0...50 °C |
| Measuring range, gas in air | 0…2000 ppm |
| Long term stability | Typically 20 ppm / year |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Colour, housing | Signal white RAL 9003 |
