Regin

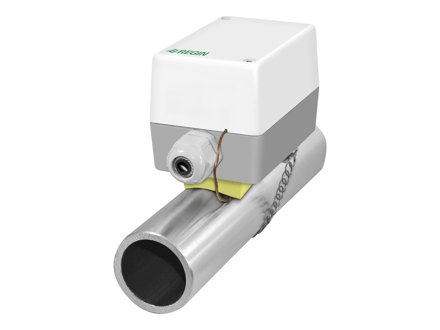

MTIS60SH Clamp-on thermostat, IP65
Thermostats for use in cooling, heating and ventilation systems.
Specifications
| Temperature range | 0...60 °C |
|---|---|
| Max. bulb temperature | 75 °C |
| Hidden setpoint | Yes |
| Sensor element | Liquid-filled coiled copper bulb for contact |
|---|---|
| Contacts | Microswitches with SPDT contacts (heat/cool) |
| Switch capacity | 15 (8) A, 24...250 V AC |
| Ambient temperature | -35...+65°C |
| Ambient humidity | 10...90 % RH (non-condensing) |
| Casing | Bayblend® base, ABS cover |
| Weight | 410 g |
| Dimensions | 108 x 70 x 72mm |
| Protection class | IP65 |
