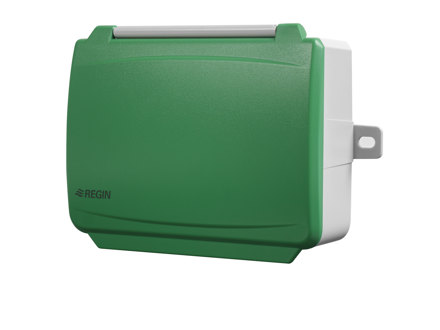

SCS-S2 Smoke control system, damper unit SCS-S2

Damper unit with Modbus communication to be connected to a Modbus master controller. Can be connected to the Regin:GO app through Bluetooth® for easier commissioning. You can connect a damper actuator (Fire damper, smoke control damper , 0-10V (VAV) or no damper actuator), temperature sensor(s) and/or smoke detector.

Specifications

Software & documentation

Accessories

Specifications

Specifications for SCS-S2
Power Supply	24VAC/DC (18...30 V AC 50/60Hz / 22...26 V DC), 2.0 VA
Dimensions, external (WxHxD)	167x110x46 mm
Supported protocols	Modbus
AI	2
DI	2
AO	1
DO	3
Technology	Bluetooth
Colour, cover	Green, RAL6032
Colour, base	Grey, RAL7035

Specifications for Smoke control system, damper unit SCS-S2
Appliance class	Class III
Protection class	IP44
Ambient humidity (non-condensing)	5…95 % RH
Storage temperature	-25…70 °C
Mounting	Wall
Weight, incl. packaging	0.252 kg
Analogue inputs type (AI)	0…10 V or PT1000
Digital inputs type (DI)	Potential-free contacts on / off (on = closed)
Digital outputs type (DO)	Mosfet sinking type outputs, 24 V AC or DC, 2 A continuous + 19 V DC, provided from terminal DO1 for smoke detector
Analogue outputs type (AO)	0…10 V
Terminal type	Screw Terminal
Material, cover	Polycarbonate (PC)
Material, base	Polycarbonate (PC)
