Regin

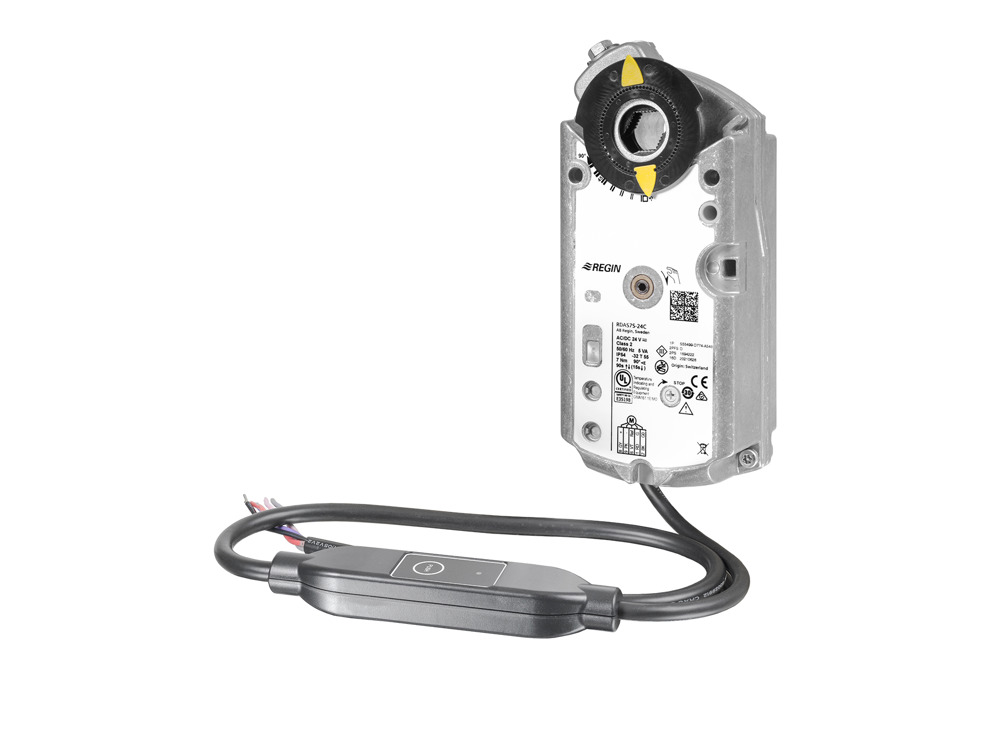

RDAS7S-24C 7 Nm, 18 Nm
Specifications
| Supply voltage | 24 V AC/DC |
|---|---|
| Power consumption | 5 VA (3.5 W - Running / 2 W - Holding) |
| Cable length | 0.9 m |
| Torque | 7 Nm |
| Control signal | Modbus RTU |
| Feedback signal | Modbus RTU |
| Running time, actuator | 90 s |
| Running time, spring | 15 s |
| Auxiliary switch | No |
| Angle limitation | 95 ° |
| Damper shaft, round | 6.4…20.5 mm |
| Damper shaft, square | 6.4…13 mm |
| Damper shaft, min shaft length | 20 mm |
| Max damper size (area) | 1.5 m² |
| Termination RS485 | 120 Ω electronically switchable |
| Appliance class | Class III |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -32…70 °C |
| Cable nominal cross section | 0.75 mm² |
| Cable length extension, maximum | 300 m |
| Working angle, rotation | 90 ° |
