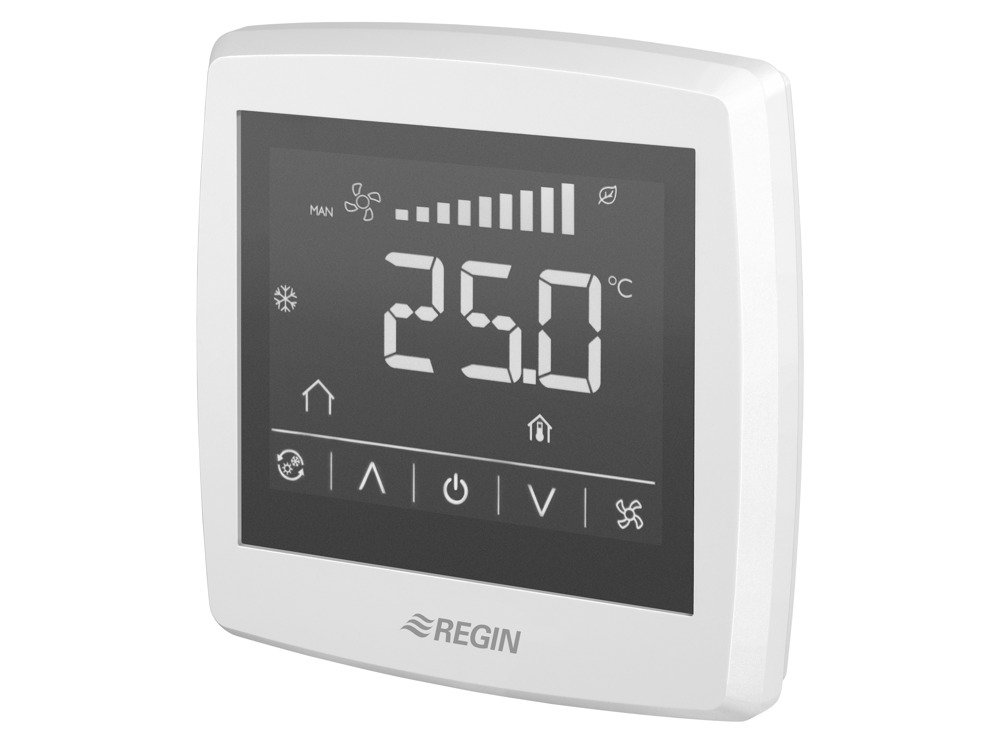

Room unit with touch display
Slim room unit with backlit touch display. The display is prepared for Plug'n Play with Regin's room controllers RegioEedo and RegioArdo and for easy configuration with the ventilation controllers CorrigoArdo and CorrigoVido. It can also be used with any Modbus master controller.
NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM (flush), ED-RUD-2-WM (wall) or ED-RUD-2-FM-BLACK (flush), ED-RUD-2-WM-BLACK (wall).
Navigeer op deze pagina
Artikelen
(2 st)-
ED-RUD-2Room unit with backlit touch display, intended for use with advanced controllers. NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM (flush) or ED-RUD-2-WM (wall).
- Dimensions, external (WxHxD)
- 95*95*23 mm
- Display type
- LED-backlit LCD
- RS485 ports
- 1
- Colour, cover
- Signal white RAL9003
-
ED-RUD-2-BLACKRoom unit with backlit touch display, intended for use with advanced controllers. Black colour. NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM-BLACK (flush) or ED-RUD-2-WM-BLACK (wall).
- Dimensions, external (WxHxD)
- 95*95*23 mm
- Display type
- LED-backlit LCD
- RS485 ports
- 1
- Colour, cover
- Jet black RAL9005
Specificaties
Power Supply | 24VAC (22...26 V AC 50Hz / ), 1.5 VA |
---|---|
Protection class | IP30 |
Ambient humidity (non-condensing) | 10…90 % RH |
Ambient temp | 0…50 °C |
Storage temp | -20…70 °C |
Weight, incl. packaging | 0.18 kg |
Terminal wire size | 1.5 mm² |
Material, housing | Polycarboante (PC) |
Software en documentatie
Productblad
Instructies
Andere documentatie
Accessoires
Backplate for flush mounting of ED-RUD-2
Backplate for flush mounting of ED-RUD-2. Black colour.
Cable for USB connection
Backplate for wall mounting of ED-RUD and ED-RUD-2
Backplate for wall mounting of ED-RUD and ED-RUD-2.
3 m cable for connecting an external display
10 m cable for connecting an external display
