Regin

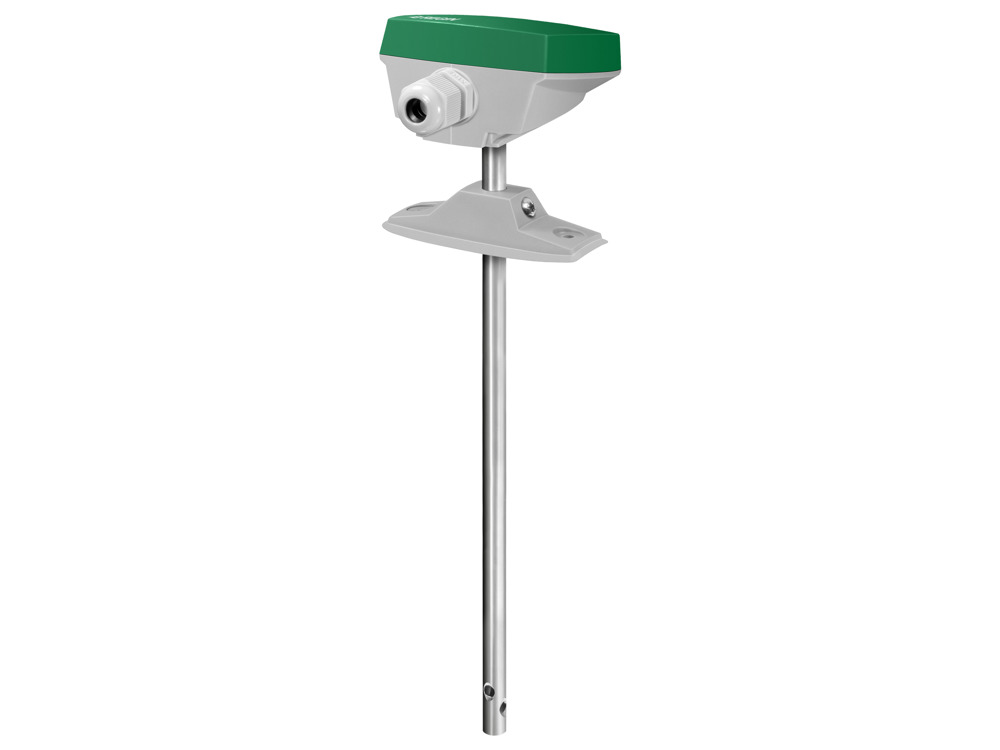

TG-KH3/NTC2.2 Duct sensor with housing
Duct sensor with housing
Navigate on this page
Specifications
| Sensor element | NTC 2.2 |
|---|---|
| Nominal resistance | 2252 Ω (25°C) |
| Insertion length | 60…205 mm |
| Equivalent | Johnson Controls |
| Protection class | IP65 |
|---|---|
| Time constant | 16s |
| Measuring range, temperature | -30...+70°C |
| Cable gland | M16 |
| Diameter, probe | 8mm |
| Dimensions, external (WxHxD) | 78 x 263 x 104 mm |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material, probe | Stainless steel, SUS304 |
