Regin

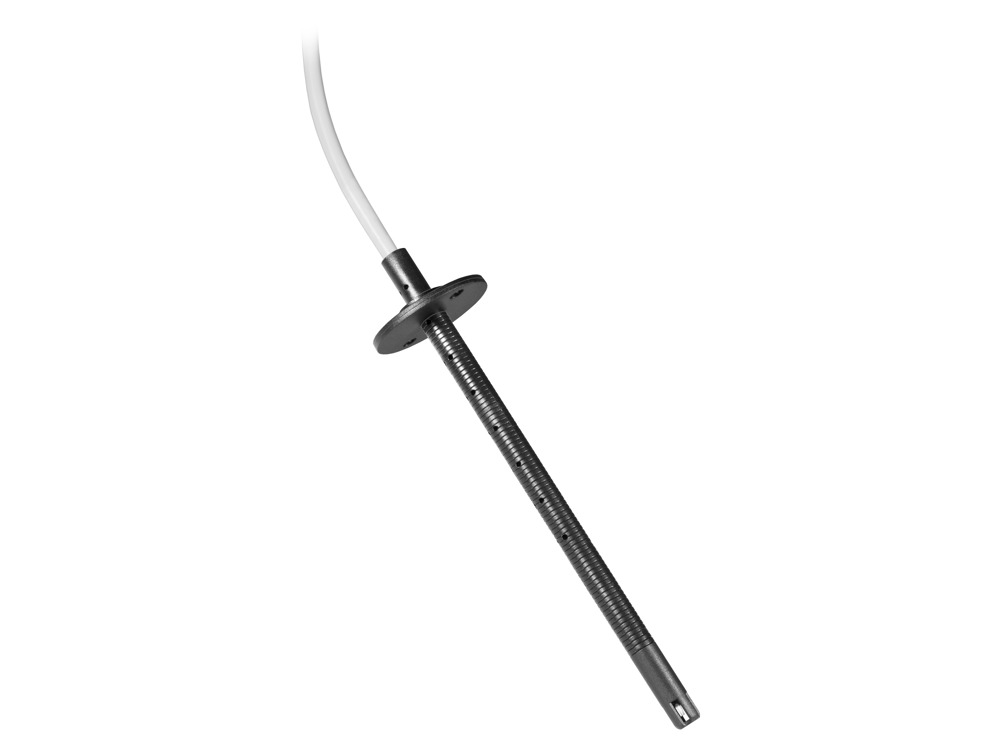

TG-K3/PT1000 Duct sensor with cable
Duct sensor
Specifications
| Mounting | Duct |
|---|---|
| Cable length | 1.5 m |
| Insertion length | 15…140 mm |
| Time constant | 50 s |
| Element type | PT1000 |
| Measuring range, temp | -30…70 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω/0°C |
| Protection class | IP20 |
|---|---|
| Mounting | Duct |
| Material cable | PVC |
| Material pipe | ABS, top PA6 |
| Mounting plate | PVC |
