Regin

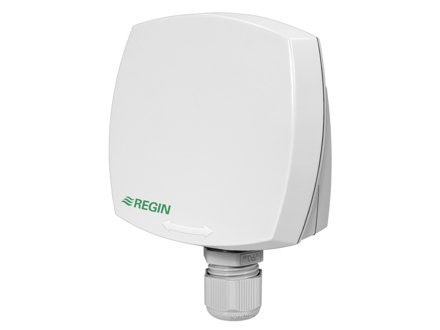

TG-UH3/PT1000 Outdoor temperature sensor with housing
Outdoor sensor
Specifications
| Mounting | Outdoor |
|---|---|
| Dimensions, external (WxHxD) | 78x51x104 mm |
| Element type | PT1000 |
| Measuring range, temp | -50…70 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω (0°C) |
| Protection class | IP65 |
|---|---|
| Mounting | Wall |
| Weight, incl. packaging | 0.9 kg |
| Cable gland | M16x1,5 |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
