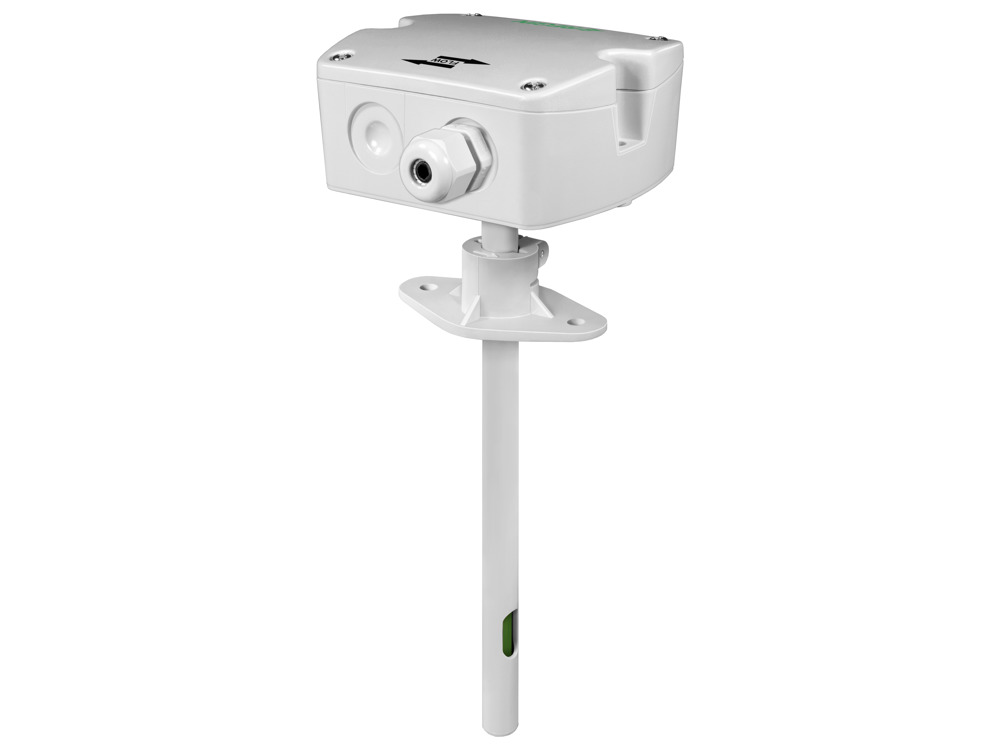

CO 2 transmitter with temperature sensor for duct mounting, 4…20 mA
Regin

CO2 transmitter with temperature sensor for duct mounting, 4…20 mA

This product is discontinued

This product is discontinued

Transmitter for measuring carbon dioxide concentration in air. Passive PT1000 output for temperature measurement.

Specifications
Software & documentation

Articles

(0 st)

Specifications

Specifications for CO2 transmitter with temperature sensor for duct mounting, 4…20 mA
Supply voltage 24 V AC ±20 %, 50…60 Hz, 2 VA, 15…35 V DC
Working range, CO 2 0…2000ppm
Working range, temperature 0…50°C
Output signal 4…20 mA
Accuracy, CO 2 < ± (50 ppm + 2 % of the measured value)
Accuracy, temperature ±0.3°C
Mounting Duct
Protection class IP65

Software & documentation

Product sheet

Instructions

Other documentation
