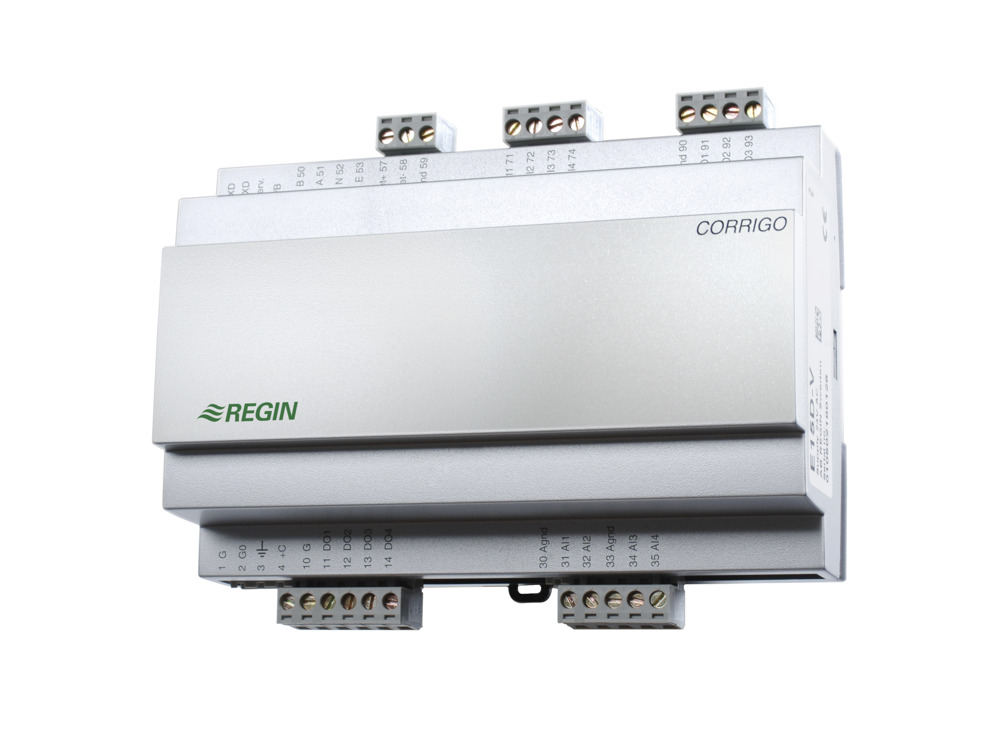

E282-S Corrigo RS485 (Modbus, EXOline)
This article is discontinued
Controller without display
Navigate on this page
Specifications
| Inputs | 16 |
|---|---|
| Outputs | 12 |
| Dual ports | Yes |
| Supply voltage | 24 V AC ±15 %, 50...60 Hz or 20...36 V DC |
|---|---|
| Power consumption | 5 VA, 3 W (DC) WEB models: 9 VA, 5 W (DC) |
| Ambient temperature | 0...50°C |
| Storage temperature | -40...+50°C |
| Ambient humidity | Max. 90 % RH |
| Protection class | IP20 |
| Memory backup | Built-in long-life battery with long time back-up of all settings |
| Display | Backlit, LCD, 4 rows of 20 characters |
| Dimensions (WxHxD) | 148 x 123 x 58mm |
| Mounting | DIN-rail |
| Communication | RS485, EXOline (free protocol) and Modbus as standard. LON and TCP/IP as options. |
| Analogue inputs (AI) | For a PT1000 sensor or 0...10 V DC |
| Digital inputs (DI) | For potential-free contacts |
| Analogue outputs (AO) | 0...10 V DC, 1 mA, short-circuit proof |
| Digital outputs (DO) | Mosfet 2 A each, max. 8 A total, 24 V AC or DC |
Software & documentation
Software
Instructions
Other documentation
- Corrigo E heating variables for EXOline and modbus 2.1 (EN)
- Corrigo E heating variables for EXOline and modbus 3.1 (EN)
- Corrigo E ventilation variables for EXOline and modbus 2.3 (EN)
- Corrigo E ventilation variables for EXOline and modbus 3.0 (EN)
- Corrigo E ventilation variables for EXOline and Modbus 3.1 (EN)
- Corrigo E ventilation variables for EXOline and Modbus 3.2 (EN)
- Corrigo E heating variables for EXOline and Modbus 3.2 (EN)
- Corrigo 3.3 BACnet PICS (EN)
- E282-S, CE decl. (EN)
