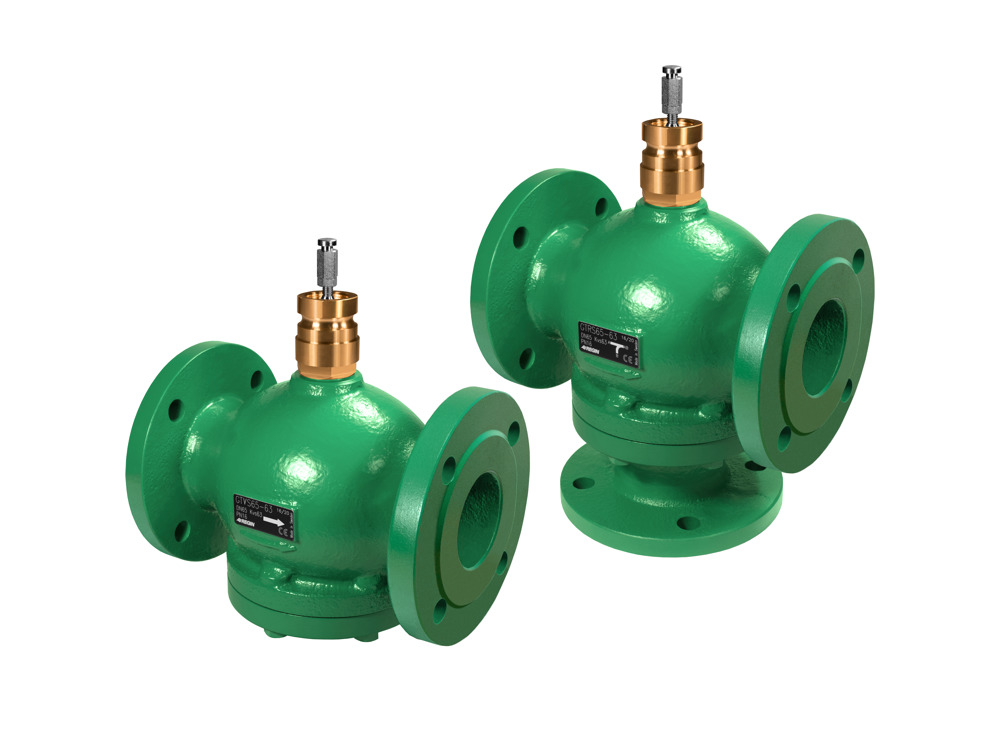

2- and 3-way control valves, DN65-150, kvs 63-310

This product is discontinued

This product is discontinued

Control valves intended for use in heating and ventilation systems. The valves are intended to be used together with Regin’s RVAN actuators.

Specifications
Software & documentation
Accessories

Articles

(1 st)
  • GTVS80-100 - Regin
    GTVS80-100
    Nominal diameter
    DN80
    Kvs
    100 m 3 /h
    Max. diff. pressure
    400 kPa
    Stroke
    36 mm
    Actuator
    RVAN18

Specifications

Specifications for 2- and 3-way control valves, DN65-150, kvs 63-310
Pressure rating PN16
Connection Flanged according to EN 1092-2
Flow characteristics Square
Max. leakage 0.1 % of kvs
Media temperature -5…+120°C
Media Hot water, cold water, glycol-mixed water
Rangeability 50:1
Body Cast iron EN-JL 1040
Seat Gunmetal CC491K (RG5)
Plug Gunmetal CC491K (RG5)
Stem Stainless steel 1.4305
Packing box Dezincification resistant brass CW 602N, self-adjusting teflon
O-rings Viton
Bonnet Brass CW614N

Software & documentation

Product sheet

Accessories

S0603080300
S0603080300

Spare parts kit, packing box for ETRS, MTVS and MTRS valves (until 2019-12), for ETVS valves (until 2021-04)…
