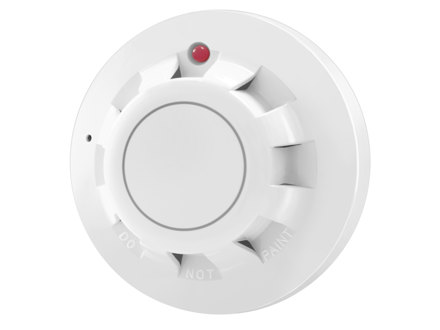

S65-OEOptical detector with service alarm- Power Supply
- 9...33 V DC (via ABV control unit)
- Dimensions, external (WxHxD)
- 100x100x50 mm
- Service alarm
- Red LED on detector. Yellow LED on control unit.
- Current consumption, normal
- 10 mA
- Current consumption during alarm
- 50 mA
- Current consumption during service alarm
- 20 mA
- End resistor
- An end resistor (2,2 kΩ) should be connected to the last detector to end the loop.
Specifications
| Protection class | IP23 |
|---|---|
| Ambient humidity (non-condensing) | 5…95 % RH |
| Mounting | Ceiling |
| Smoke alarm | Red LED |
| Supply voltage | 9...33 V DC (via ABV control unit) |
| Current consumption | 10 mA (50 mA if an alarm occurs) |
| Mounting | Ceiling |
| Protection class | IP43 |
