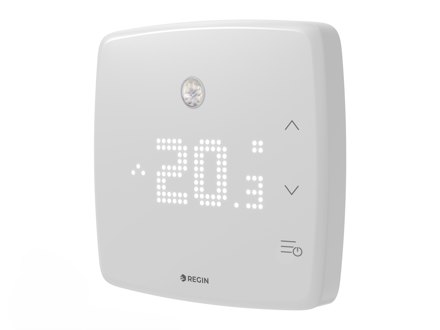

RUX-THCVP-D Regio RUX
Regio RUX, Room Unit, Temp, Humidity, CO2, VOC, PIR, Display
Specifications
| RS485 ports | 1 |
|---|---|
| Technology | Bluetooth |
| Temperature Sensor | Yes |
| Humidity Sensor | Yes |
| CO2 Sensor | Yes |
| VOC Sensor | Yes |
| PIR Sensor | Yes |
| Display | Yes |
| Power Supply | 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 0…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | Wall (separate backplate) |
| Weight, incl. packaging | 0.115 kg |
| Accuracy, temperature | ±0,5K (15-30°C) K |
| Terminal wire size | 2.1 mm² |
| Material, housing | Polycarbonate (PC) |
| Colour, housing | RAL9003 Polar White / RAL9005 Jet Black |
Software & documentation
Configuration tools
Configuration software for Regin newer configurable controllers. New controllers always available from cloud…
- Operating system
- Windows 10 or 11 is recommended.
Regin:GO - Android App for configuration of Regio RCX/RUX/RTX, SCS-S2 and PDTN. Download from: Regin:GO Android…
Accessories
Medium Backplate with terminals, fits all RCX, RUX and RTX models. Used when RCX/RUX/RTX is mounted on wall with…
Low Backplate with terminals, fits all RCX, RUX and RTX models. Used when RCX/RUX/RTX mounted over appliance box…
Low Backplate, black with terminals, fits all RCX and RUX models. Used when RCX/RUX is mounted over appliance…
Medium backplate with terminals, fits all RCX and RUX models. Used when RCX/RUX mounted on wall with no appliance…
