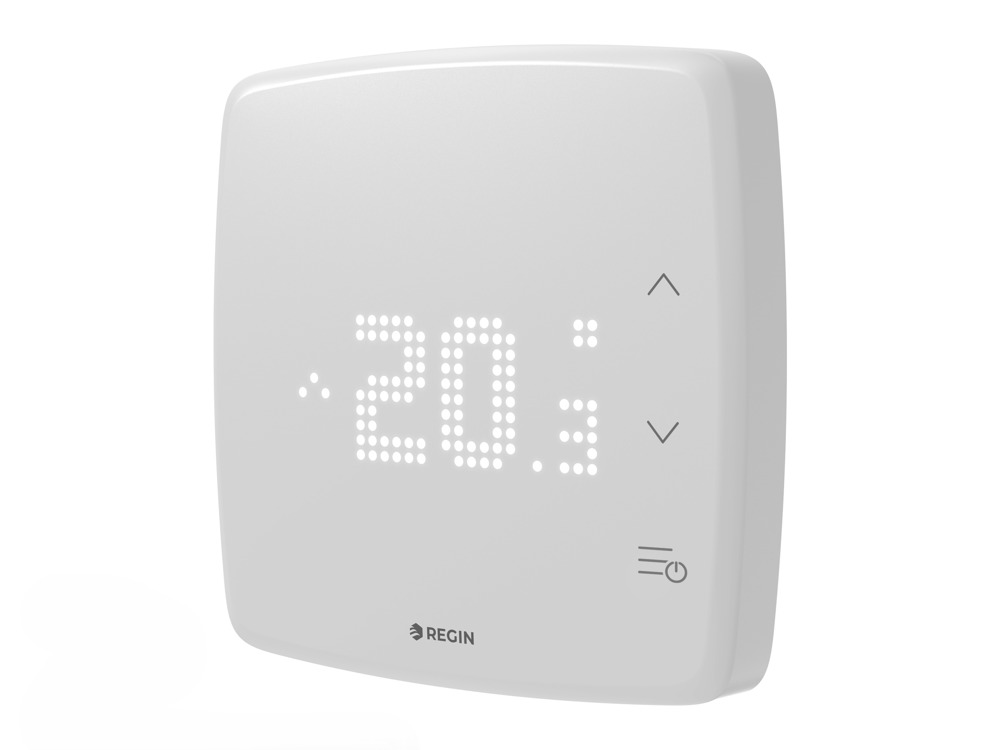

Regio RUX
Regio RUX is a wall-mounted room unit that combines smart sensing, sleek design, and effortless integration with an easy-to-understand user interface. With built-in sensors for temperature, humidity, CO₂, VOC and motion, it delivers all essential room data in one device. Available in white or black, the slim, minimalist design fits discreetly into any environment, while the LED matrix display provides clear, easy-to-read information with a simple traffic light system for CO₂ levels. The Regio RUX integrates seamlessly with BACnet, Modbus and EXOline, and works out-of-the-box with Regio Ardo/Eedo room controllers. Maintenance is effortless with wireless updates via the Regin:GO app, and smart terminals make installation and troubleshooting quick and reliable.
With the Regio RUX, you get precision, simplicity, and style in a single solution for modern building environments.
Articles
(6 st)-
RUX-T-D- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- No
- CO2 Sensor
- No
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RUX-TH-D
- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- Yes
- CO2 Sensor
- No
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RUX-TC-D
- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- No
- CO2 Sensor
- Yes
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RUX-THCVP-D
- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- Yes
- CO2 Sensor
- Yes
- VOC Sensor
- Yes
- PIR Sensor
- Yes
- Display
- Yes
-
RUX-TC-D-BLACK
- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- No
- CO2 Sensor
- Yes
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RUX-THCVP-D-BLACK
- RS485 ports
- 1
- Technology
- Bluetooth
- Temperature Sensor
- Yes
- Humidity Sensor
- Yes
- CO2 Sensor
- Yes
- VOC Sensor
- Yes
- PIR Sensor
- Yes
- Display
- Yes
Specifications
| Power Supply | 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 0…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | Wall (separate backplate) |
| Weight, incl. packaging | 0.115 kg |
| Accuracy, temperature | ±0,5K (15-30°C) K |
| Terminal wire size | 2.1 mm² |
| Material, housing | Polycarbonate (PC) |
| Colour, housing | RAL9003 Polar White / RAL9005 Jet Black |
Software & documentation
Accessories
Configuration software for Regin newer configurable controllers. New controllers always available from cloud…
- Operating system
- Windows 10 or 11 is recommended.
Medium Backplate with terminals, fits all RCX, RUX and RTX models. Used when RCX/RUX/RTX is mounted on wall with…
Low Backplate with terminals, fits all RCX and RTX models. Used when RCX/RTX mounted over appliance box. (Details…
Low Backplate, black with terminals, fits all RCX and RUX models. Used when RCX/RUX is mounted over appliance…
Medium backplate with terminals, fits all RCX and RUX models. Used when RCX/RUX mounted on wall with no appliance…
