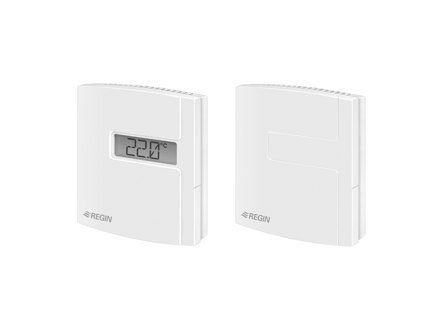

CO2, temperature and humidity transmitter, room mounting

Transmitters for wall mounting with or without display.

Specifications
Software & documentation

Articles

(4 st)
  • CTHR - Regin
    CTHR
    CO2 + RH + PT1000, 1000 Ohm (0°C)
    Measuring range, temp
    0…50 °C
    Sensor element, temperature
    PT1000
    Output humidity
    0-10 V
    Output signal, gas in air
    0-10 V
    Accuracy, gas in air
    < ± (50 ppm + 2 % of the measured value)
    Warm-up time
    < 5 min
    Temperature dependance
    Typically 5 ppm / K
  • CTHR-D - Regin
    CTHR-D
    CO2 + °C + RH
    Display
    Yes
    Measuring range, temp
    0…50 °C
    Sensor element, temperature
    PT1000
    Output humidity
    0-10 V
    Output signal, gas in air
    0-10 V
    Accuracy, gas in air
    < ± (50 ppm + 2 % of the measured value)
    Warm-up time
    < 5 min
    Temperature dependance
    Typically 5 ppm / K
  • CTHRA - Regin
    CTHRA
    CO2 + °C + RH
    Measuring range, temp
    0…50 °C
    Output temperature
    0-10 V
    Output humidity
    0-10 V
    Output signal, gas in air
    0-10 V
    Accuracy, gas in air
    < ± (50 ppm + 2 % of the measured value)
    Warm-up time
    < 5 min
    Temperature dependance
    Typically 5 ppm / K
  • CTHRA-D - Regin
    CTHRA-D
    CO2 + °C + RH
    Display
    Yes
    Measuring range, temp
    0…50 °C
    Output temperature
    0-10 V
    Output humidity
    0-10 V
    Output signal, gas in air
    0-10 V
    Accuracy, gas in air
    < ± (50 ppm + 2 % of the measured value)
    Warm-up time
    < 5 min
    Temperature dependance
    Typically 5 ppm / K

Specifications

Specifications for CO2, temperature and humidity transmitter, room mounting
Power Supply 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.5 VA
Protection class IP30
Ambient humidity (non-condensing) 10…90 % RH
Ambient temperature 0…50 °C
Storage temperature -25…60 °C
Mounting Room
Dimensions, external (WxHxD) 100x85x30 mm
Time constant 90 s
Accuracy, temperature ±0.3°C at 20 °C K
Accuracy, temperature 1 ±0.4 °K @ 0...50 °C
Measuring range, humidity 10…90 % RH
Sensor element, humidity Capacitive
Accuracy, humidity ±3 % RH
Measuring range, gas in air 0…2000 ppm
Long term stability Typically 20 ppm / year
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, housing Polycarbonate (PC)
Colour, housing Signal white RAL 9003
