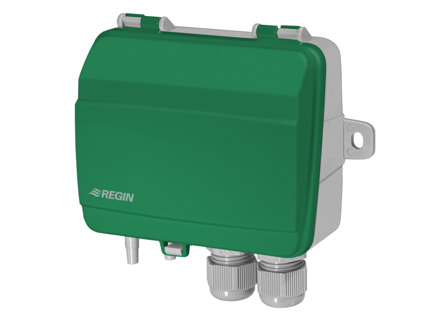

Presigo (PDT…-C) - Differential pressure transmitters with communication

Differential pressure transmitters with two universal inputs and communication via EXOline or Modbus.

Articles

(7 st)
  • PDT12C - Regin
    PDT12C
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…1250 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    25 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
    Unit. Range CFM [Ft3/min]
    0…65000
  • PDT25C - Regin
    PDT25C
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…2500 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    50 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
    Unit. Range CFM [Ft3/min]
    0…65000
  • PDT75C - Regin
    PDT75C
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…7500 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    120 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
    Unit. Range CFM [Ft3/min]
    0…65000
  • PDT12C-2 - Regin
    PDT12C-2
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…1250 Pa
    Pressure, range sensor 2
    0…1250 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Accuracy, pressure sensor 2
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    25 kPa
    Max. allowed diff. Pressure sensor 2
    25 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
  • PDT25C-2 - Regin
    PDT25C-2
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…2500 Pa
    Pressure, range sensor 2
    0…2500 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Accuracy, pressure sensor 2
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    50 kPa
    Max. allowed diff. Pressure sensor 2
    50 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
  • PDT12S25C-2 - Regin
    PDT12S25C-2
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…1250 Pa
    Pressure, range sensor 2
    0…2500 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Accuracy, pressure sensor 2
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    25 kPa
    Max. allowed diff. Pressure sensor 2
    50 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
  • PDT12S75C-2 - Regin
    PDT12S75C-2
    Dimensions, external (WxHxD)
    120*40*112 mm
    Supported protocols
    Modbus
    Universal inputs type (UI)
    PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
    Max Overvoltage on any terminal
    Max. ±18 V (referenced to GND) V
    Analogue output load impedance 0...10v
    Min. 10 kΩ
    Pressure, range sensor
    0…1250 Pa
    Pressure, range sensor 2
    0…7500 Pa
    Accuracy, pressure sensor 1
    ≤ 1 % full scale %
    Accuracy, pressure sensor 2
    ≤ 1 % full scale %
    Max. allowed diff. Pressure sensor 1
    25 kPa
    Max. allowed diff. Pressure sensor 2
    120 kPa
    Damping (electronic)
    settable 1…12 s
    Unit. Range l/s
    0…31000
    Unit. Range m3/h
    0…65000 (factory setting)
Specifications for Presigo (PDT…-C) - Differential pressure transmitters with communication
Power Supply 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.0 VA
Protection class IP54
Ambient humidity (non-condensing) 0…95 % RH
Ambient temp -25…50 °C
Mounting Wall
Media Air, non-combustible and non-aggressive gases
Cable gland M16x1,5
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, housing Polycarbonate (PC)
Material, cover Polycarbonate (PC)
Material, base Polycarbonate (PC)
Material cable Polycarbonate (PC)
ANS-20

2 m plastic tube and two pressure outlets (straight)

ANS-1

2 m plastic tube and two pressure outlets (cut 60°)
