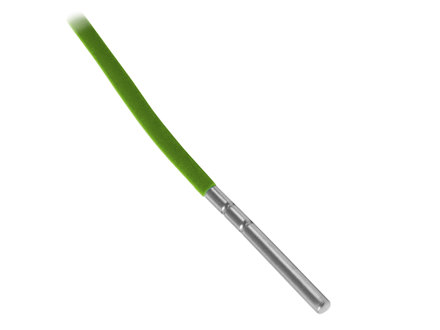

Bulb sensor, 4 mm diameter
Regin

Bulb sensor, 4 mm diameter

Specifications
Software & documentation

Articles

(2 st)
  • TG-B4/NTC10-01 - Regin
    TG-B4/NTC10-01
    Bulb sensor
    Mounting
    Bulb
    Cable length
    1.5 m
    Time constant
    5 s
    Element type
    NTC10-01
    Measuring range, temp
    -50…110 °C
    Nominal resistance
    10 kΩ/25°C
  • TG-B4/NTC20 - Regin
    TG-B4/NTC20
    Bulb sensor
    Mounting
    Bulb
    Cable length
    1.5 m
    Time constant
    5 s
    Element type
    NTC20
    Measuring range, temp
    -50…110 °C
    Nominal resistance
    20 kΩ (25°C)

Specifications

Specifications for Bulb sensor, 4 mm diameter
Sensor element PT1000
Nominal resistance 1000 Ω/0°C
Temperature range -50…+110°C
Material, bulb Stainless steel AISI 304
Material, cable Thermoplastic rubber
Bulb length 40 mm
Cable length 1.5m
Diameter 4mm
Protection class IP67
Accuracy Class B
Protection class IP67
Bulb length 40 mm
Bulb diameter 4 mm
Material cable Thermoplastic rubber
Material sensor Stainless steel, AISI 304
