Regin

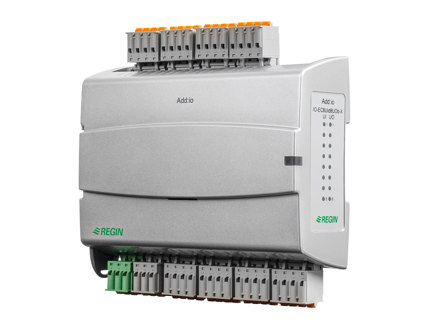

IO-EC8UID8UOB-X Add:io, additional I/O units
Add:IO, 8 Universal inputs UId, 8 Universal outputs UOb
Cost-effective solution: This Add:IO unit is specifically designed to be the last unit in your setup, making it a cost-effective choice.
While other Add:IO units may be larger and focused on specific signal types, this unit efficiently handles the last signals and provides additional spare capacity.
Specifications
| Power Supply | 24VAC/DC (18...26 V AC 50Hz / 22...30 V DC), 7.8 VA |
|---|---|
| Dimensions, external (WxHxD) | 140x136x46 mm |
| UI | 8 |
| DI | 0 |
| UO | 8 |
| DO | 0 |
| Number of I/O | 16 |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Weight, incl. packaging | 0.3 kg |
| Terminal block width | 5 mm |
| Terminal type | Spring load terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
