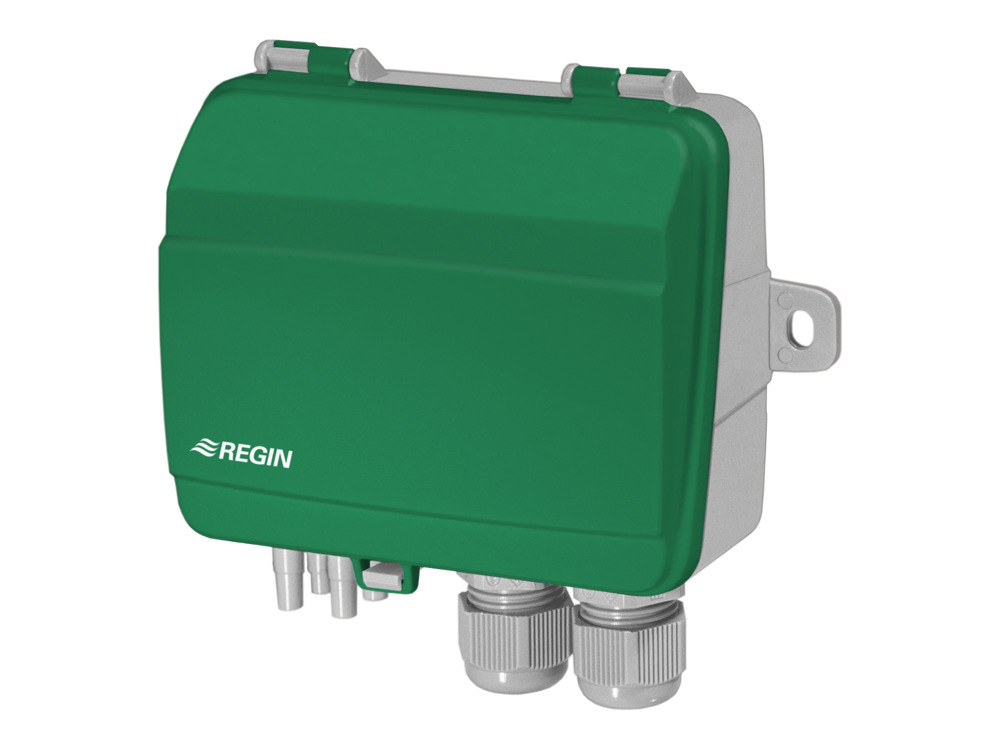

Presigo (PDT…) - Differential pressure transmitters with analogue outputs
Single or dual port differential pressure transmitters with one or two analogue outputs. The transmitter can be configured for 0-10 V or 4-20 mA output signal. Selectable working range.
Navigate on this page
Articles
(5 st)-
PDT12- Working range
- 0…1250 Pa
- Number of sensors
- 1
-
PDT25
- Working range
- 0…2500 Pa
- Number of sensors
- 1
-
PDT75
- Working range
- 0…7500 Pa
- Number of sensors
- 1
-
PDT12S25-2
- Working range
- PS1: 0…1250 Pa
- Number of sensors
- 2
-
PDT12S75-2
- Working range
- PS1: 0…1250 Pa
- Number of sensors
- 2
Specifications
| Supply voltage | 24 V AC/DC ±15 % |
|---|---|
| Overall accuracy pressure | ≤ 1 % full scale |
| Power consumption | 0…10 V mode : 2 VA (rms), min. trafo size 7,5 VA 4…20 mA mode : 2.7 VA (rms), min. trafo size 9 VA |
| Operating temperature | -25…+50°C |
| Protection class | IP54 |
| Accessories, included | Two pressure outlets (straight) and 2 m plastic tube. Art. no.: ANS-20 |
