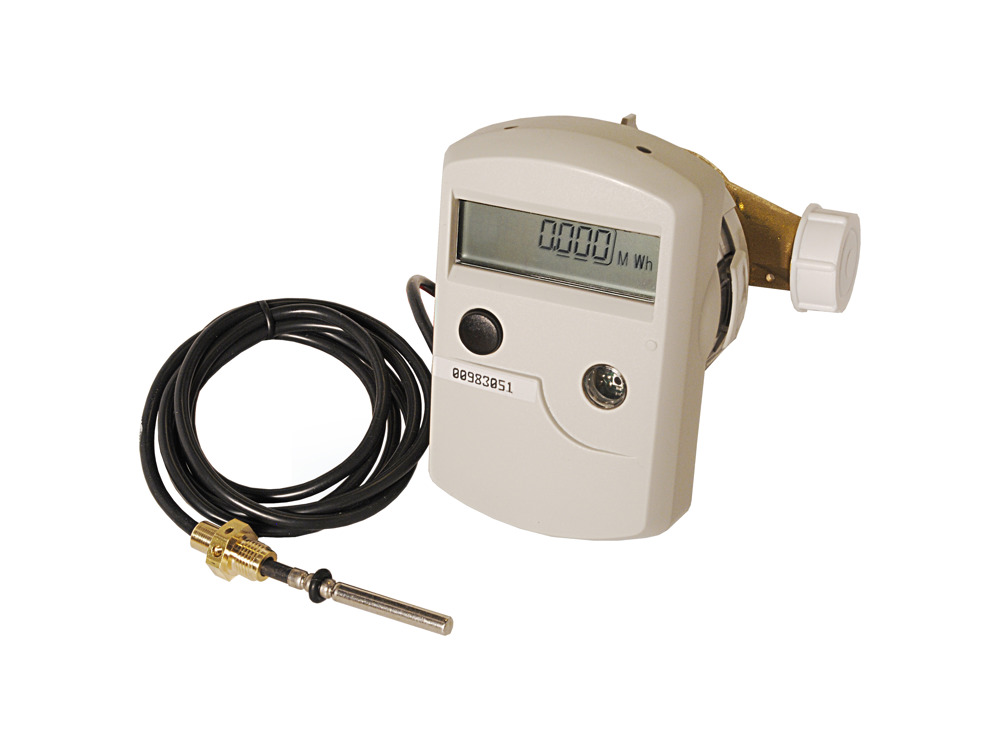

Energy meter with coaxial multi-jet turbine flow meter
Externally threaded, compact energy meters with coaxial multi-jet flow meter, intended for heating or cooling.We offer many different options, see the MSH product sheet for more information.Note: Non-stock item.
Navigate on this page
Articles
(0 st)Specifications
| Power supply | 3 V lithium battery, min. 6 + 1 years |
|---|---|
| Temperature range | 1...150°C |
| Temperature resolution | 0.01°C |
| Ambient temperature | 5...55°C |
| Storage temperature | -20…+60°C |
| Protection class | IP54 |
| Connection | Threaded according to ISO 228/1 |
| Pressure rating | PN16 |
| Media | Water |
| Mounting position | Horizontal or vertical |
| Cable length | 1.5m |
| Sensor element | PT500; separately approved type as per EN60751, unshielded |
| Diameter, sensor | 5mm |
Accessories
VSR-1/2
Brass threaded fitting with coupling ring and gasket
VSR-3/4
Brass threaded fitting with coupling ring and gasket
KH-3/4
Ball valve with coupling ring and gasket
KH-1
Ball valve with coupling ring and gasket
KH-S-3/4
Ball valve with installation point for a temperature sensor (sockets M10x1)
KH-S-1
Ball valve with installation point for a temperature sensor (sockets M10x1)
VAD-1/2
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
VAD-3/8
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
PS-110-3/4
Threaded fit
PS-130-1
Threaded fit
OPTO-CABLE-USB
Optocoupler with USB interface
OPTO-TOOL
Software device monitor
