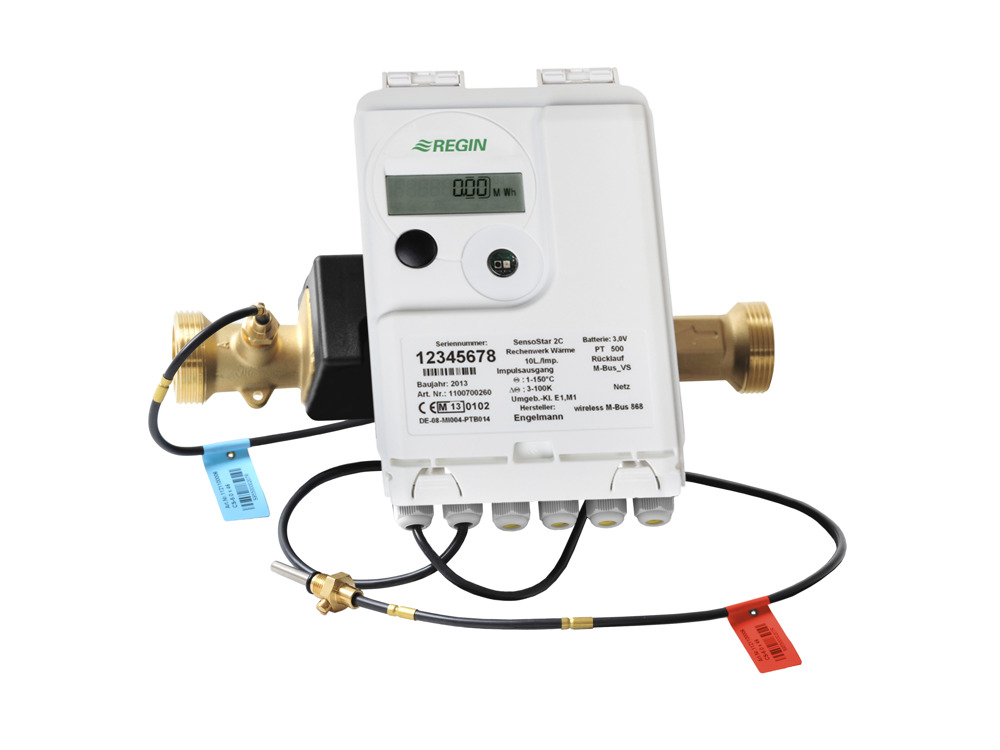

Combined threaded ultrasonic energy meters
Navigate on this page
Articles
(0 st)Specifications
| Power supply | 3.6 V lithium battery, min. 6 + 1 years |
|---|---|
| Temperature range | 1...150°C |
| Temperature resolution | 0.01°C |
| Ambient temperature | 5...55°C |
| Protection class | IP54 |
| Connection | Threaded according to ISO 228/1 |
| Pressure rating | PN16 |
| Media | Water |
| Mounting position | Horizontal or vertical |
| Cable length | 3m |
| Sensor element | PT500; separately approved type as per EN60751, unshielded |
| Diameter, sensor | 5mm |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
Brass threaded fitting with coupling ring and gasket
Brass threaded fitting with coupling ring and gasket
Brass threaded fitting with coupling ring and gasket
Brass threaded fitting with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with installation point for a temperature sensor (sockets M10x1)
Ball valve with installation point for a temperature sensor (sockets M10x1)
Ball valve with installation point for a temperature sensor (sockets M10x1)
Ball valve with installation point for a temperature sensor (sockets M10x1)
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
Threaded fit
Optocoupler with USB interface
Software device monitor
