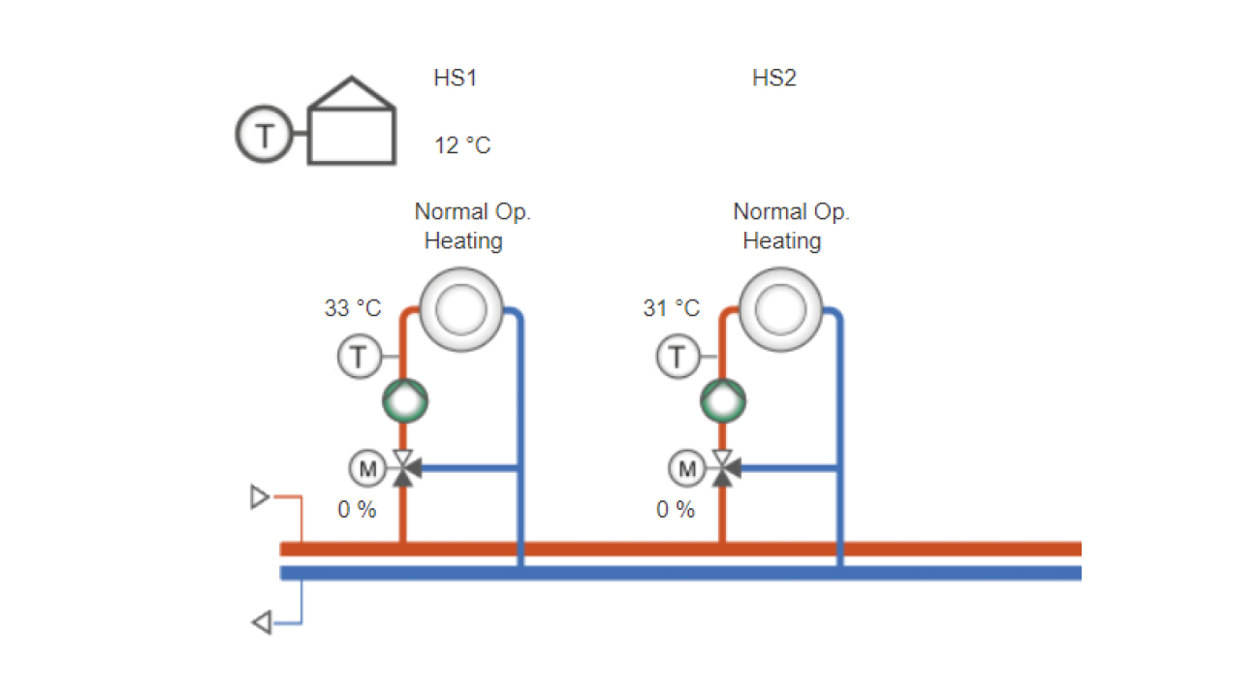

Heating application with two mixed circuits

Exigo heating systems: Control of two heating circuits

The Exigo heating controllers offer a ready-made application for the control of two heating circuits, typically used for floor heating, radiator systems, and more. The application can be downloaded from this website, customized via the application tool and loaded into the controller.

Application 002-102

Downloads for Application 002-102

Exigo Toolbox


Exigo Ardo 24V / 0-10V


Exigo Vido 230V / 3-point
Terminal connections 002  (PDF document, 246 kB) Terminal connections 102  (PDF document, 308 kB)

Description of functions

Outdoor temperature-compensated control for one radiator, convectors, or low temperature heating circuit

  • Time switch for daily, weekly, and holiday programs
  • Optimization of switch-on times
  • Caretaker function, frost protection function
  • Outdoor temperature-compensated heating circuit, with optional room-sensor for adaption
  • Min./max. limiting of supply and return temperature
  • Flash adaption
  • Support operation
  • Capacity limitation with optional energy meter
  • Cooling function - switchover based on outside temperature or digital input
