The Exigo heating controllers offer a ready-made application for the control of boiler and two mixed heating circuits, typically used for floor heating, radiator systems, and more. The application can be downloaded from this website, customized via the application tool and loaded into the controller.

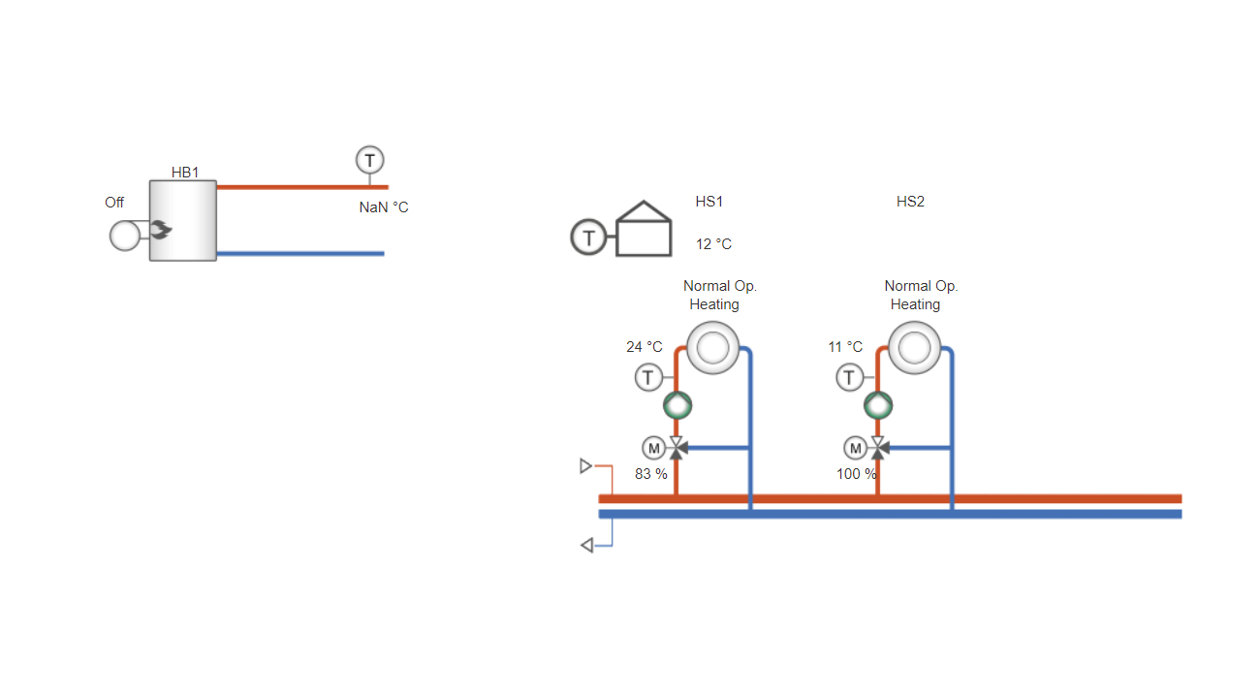

Heating system with boiler control and two mixed heating circuits
Exigo heating systems: Boiler control and two mixed heating circuits
Application 103
Download links for Application 103
Exigo Toolbox
|

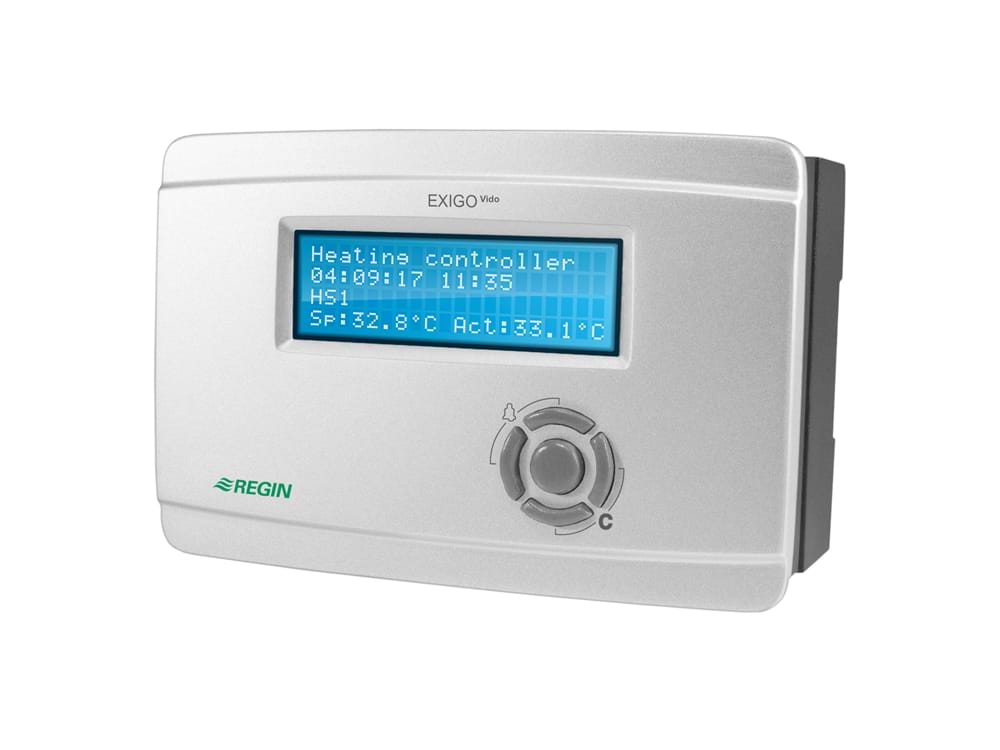

Exigo Vido 230V / 3-point |
| Terminal connections 103 (PDF document, 312 kB) |
Description of functions
Outdoor temperature-compensated control for one radiator, convectors, or low temperature heating circuit
- Time switch for daily, weekly, and holiday programs
- Optimization of switch-on times
- Caretaker function, frost protection function
- Outdoor temperature-compensated heating circuit, with optional room-sensor for adaption
- Min./max. limiting of supply and return temperature
- Flash adaption
- Support operation
- Capacity limitation with optional energy meter
- Cooling function - switchover based on outside temperature or digital input
Boiler control of boilers with 1-step
- Secondary supply temperature control with limitation of the primary return
- Supply setpoint depending on the demand of HS, HW
- Optional control of a pump
- Start- stop- delay
