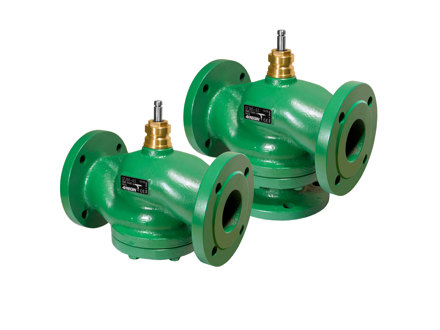

GF - 2- and 3-way control valves, DN25-200, kvs 6.3-550, DIN-standard

Control valves for use in heating, cooling and ventilation systems. They are intended to be used together with Regin’s RVAN actuators. The valves have DIN-standard lengths.

Specifications
Software & documentation
Accessories

Articles

(0 st)

Specifications

Specifications for GF - 2- and 3-way control valves, DN25-200, kvs 6.3-550, DIN-standard
Application Heating, Cooling, Ventilation
Pressure rating PN16
Connection types Flanged according to EN 1092-2
Flow characteristics Equal percentage
Leakage 0.0 % of Kvs (No leakage)
Media Hot water, Cold water, Glycol-mixed water (max. 50 % glycol)
Closing direction When stem is pulled outward
Max. diff. pressure 1300 kPa, 800 kPa, 550 kPa, 350 kPa, 200 kPa, 120 kPa, 100 kPa, 70 kPa
Media temperature -5…120 °C
Body Grey cast iron EN-GJL-250, EN-JL1040
Seat Grey cast iron EN-GJL-250, EN-JL1040, Gunmetal CC491K
Plug Brass CW614N, Gunmetal CC491K
Stem Stainless steel 1.4305
Seat packing EPDM
O-rings EPDM
Stuffing box Brass CW614N
Bonnet Brass CW614N

Software & documentation

Product sheet
Other documentation

Accessories

S2921354201
Regin S2921354201

Spare parts kit, packing box, for BTV (from 2019-01), GF (DN25-40), BF

S2921351201
Regin S2921351201

Spare parts kit, stuffing box for GF (DN50-200)

02133005
Industrietechnik 02133005

Washer for actuator, 3 mm thick with ø14 mm hole. For RVAN5 and RVAN10 on DN50-65 GF-valves.

STEMHEATER
Regin STEMHEATER

Valve stem heater
