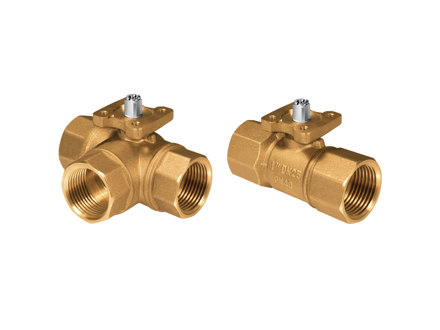

BV - 2- and 3-way ball valves, DN15-50, kvs 0.6-63
Ball valves designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. These ball valves can be used as either characterized control ball valves when a flow plate is installed in port A (default mode), or as on/off ball valves when the flow plate is removed. When the flow plate is removed the Kvs between port A and AB is increased. The valves are intended for use with Regin's RVAB4/RVAB5 actuators.
Articles
(9 st)-
BV220- Rangeability
- 100:1
- Nominal diameter
- DN20
- Kvs
- 6.3 m³/h
- Max. diff. pressure
- 2500 kPa
- Connection
- G3/4"
- Media temperature
- -5…140 °C
-
BV225
- Rangeability
- 100:1
- Nominal diameter
- DN25
- Kvs
- 10 m³/h
- Max. diff. pressure
- 2500 kPa
- Connection
- G1"
- Media temperature
- -5…140 °C
-
BV232
- Rangeability
- 100:1
- Nominal diameter
- DN32
- Kvs
- 16 m³/h
- Max. diff. pressure
- 1600 kPa
- Connection
- G1 1/4"
- Media temperature
- -5…140 °C
-
BV240
- Rangeability
- 100:1
- Nominal diameter
- DN40
- Kvs
- 25 m³/h
- Max. diff. pressure
- 1600 kPa
- Connection
- G1 1/2"
- Media temperature
- -5…140 °C
-
BV315
- Rangeability
- 100:1
- Nominal diameter
- DN15
- Kvs, adjustable
- 0.6/1.0/1.6/2.5/4.0 m³/h
- Max. diff. pressure
- 2500 kPa
- Connection
- G1/2"
- Media temperature
- -5…140 °C
-
BV320
- Rangeability
- 100:1
- Nominal diameter
- DN20
- Kvs
- 6.3 m³/h
- Max. diff. pressure
- 2500 kPa
- Connection
- G3/4"
- Media temperature
- -5…140 °C
-
BV325
- Rangeability
- 100:1
- Nominal diameter
- DN25
- Kvs
- 10 m³/h
- Max. diff. pressure
- 2500 kPa
- Connection
- G1"
- Media temperature
- -5…140 °C
-
BV332
- Rangeability
- 100:1
- Nominal diameter
- DN32
- Kvs
- 16 m³/h
- Max. diff. pressure
- 1600 kPa
- Connection
- G1 1/4"
- Media temperature
- -5…140 °C
-
BV340
- Rangeability
- 100:1
- Nominal diameter
- DN40
- Kvs
- 25 m³/h
- Max. diff. pressure
- 1600 kPa
- Connection
- G1 1/2"
- Media temperature
- -5…140 °C
Specifications
| Application | Cooling, Ventilation, Heating, Fan coil, Cooling, Ventilation, Heating, Fan coil |
|---|---|
| Pressure rating | PN40 |
| Connection types | BSP internally threaded according to ISO 228/1 |
| Flow characteristics | Equal percentage |
| Leakage | 0.0 % of Kvs (No leakage) |
| Media | Hot water, Cold water, Glycol-mixed water (max. 50 % glycol) |
| Angle of rotation | 90 ° |
| Max. diff. pressure | 2500 kPa |
| Media temperature | -5…140 °C |
| Actuator connection | Standard for RVAB4 actuators, Standard for RVAB5 actuators |
| Body | Brass CW617N |
| Seat | PTFE |
| Stem | Stainless steel 1.4305 |
| Ball | Chromed brass CW614N |
| Flow plate | POM |
| Circlips | Stainless steel 1.4310 |
| O-rings | EPDM |
| Gasket | EPDM |
