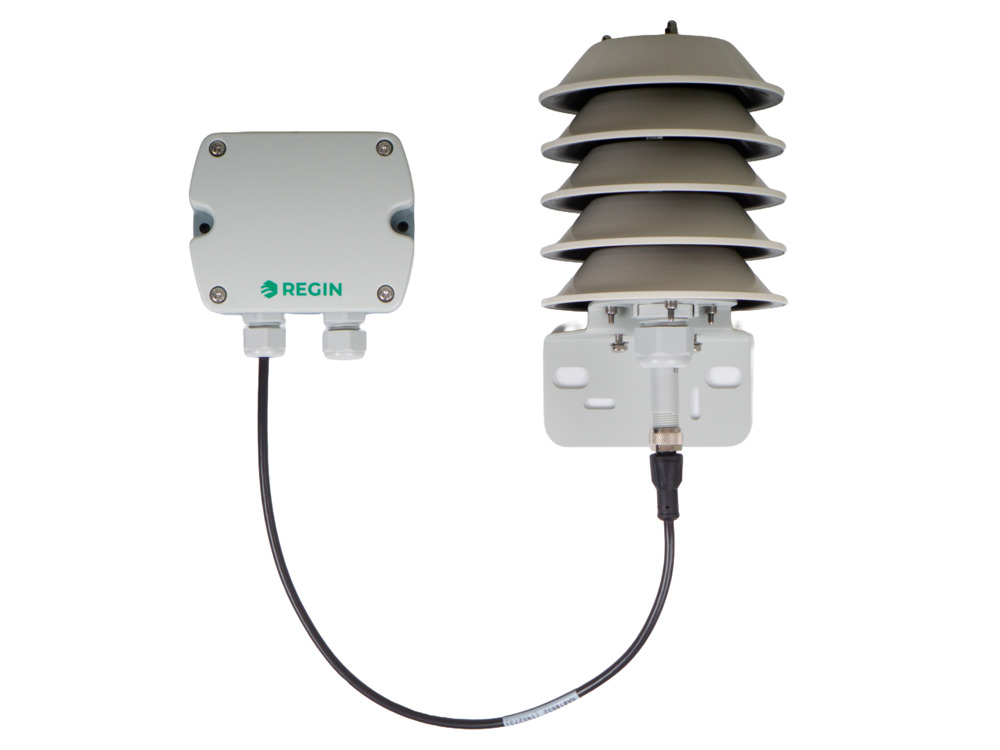

HTWT10WS Humidity/temperature transmitter ±2 % RH, for harsh environments
Humidity and temp transmitter, 0-100% ±2%, 0-10V, wall, weather shield
Specifications
| Sensor Interface | 0-10 V |
|---|---|
| Display | No |
| Analogue output load impedance 0...10v | Min. 10 kΩ |
| Measuring range, temp | -20…80 °C |
| Sensor element protection, humidity | Membrane filter |
| Accuracy, humidity 1 | ±1.3 % RH @ 0...100 % RH |
| Colour, cover | Signal white RAL 9003 |
| Colour, base | Grey RAL7035 |
| Power Supply | 24VAC (19...28 V AC 50Hz / ), VA |
|---|---|
| Protection class | IP65 |
| Storage temperature | -40…60 °C |
| Mounting | Wall |
| Dimensions, external (WxHxD) | 85x171x35 mm |
| Weight, incl. packaging | 0.2 kg |
| Accuracy, temperature | ±0.3 °K K |
| Accuracy, temperature 1 | ±0.3 °K @ ...20 °C |
| Accuracy, temperature 2 | ±0.3 °K @ -20...60 & > °C |
| Measuring range, humidity | 0…100 % RH |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Material, housing | Polycarbonate (PC) |
