Regin

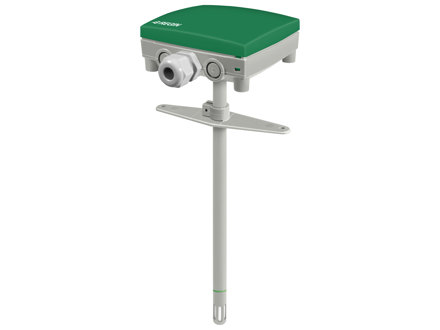

Air velocity transmitter
The transmitter is intended for air velocity measurement in HVAC systems, ventilation ducts or similar applications.
Articles
(1 st)-
AVDT25NAir velocity transmitter- Max air velocity
- 20 m/s
- Insertion length
- 20…200 mm
- Analogue output load impedance 0...10v
- > 10 kΩ
- Analogue output load impedance 4...20mA
- < 500 Ω
- Accuracy
- Range 0.2...10 m/s ±(0.2 m/s + 3% of value)
- Response time
- Selectable 0.7 or 4 s s
- Output
- 0...10 V DC or 4...20 mA, selectable
Specifications
| Protection class | IP65 |
|---|---|
| Ambient temperature | -10…50 °C |
| Storage temperature | -30…60 °C |
| Mounting | Duct |
| Dimensions, external (WxHxD) | 90x255x85 mm |
| Time constant | 1,5 s at 10 m/s s |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
