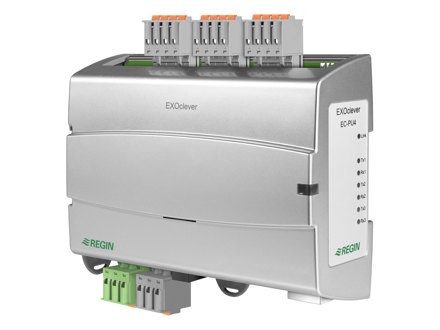

EXOclever - Processor unit with 4 communication ports
Regin

EXOclever - Processor unit with 4 communication ports

EXOclever is a series of freely programmable controllers with a modular design, which makes it easy to increase the capacity and add more functions.

Specifications
Software & documentation
Accessories

Articles

(1 st)
  • EC-PU4-2 - Regin
    EC-PU4-2
    Processor unit, 4 communication ports. Added support for controller web, Modbus master IP and multiple ports Modbus master RTU
    Power Supply
    24VAC/DC (18...26 V AC 50/60Hz / 22...30 V DC), 10.0 VA
    Dimensions, external (WxHxD)
    140x136x40 mm
    RS485 ports
    3
    Ethernet ports
    1
    EFX ports
    1

Specifications

Specifications for EXOclever - Processor unit with 4 communication ports
Battery life time 5 years
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -20…70 °C
Storage humidity 0...95 % RH
Protection class IP20

Software & documentation

Product sheet
Manuals
Other documentation

Accessories

IO-EC16UID-X
Regin IO-EC16UID-X

Add:IO, 16 UId Universal inputs (pt1000, 0-10V, 4..20mA, Digital input)

UI
16
DI
0
UO
0
DO
0
IO-EC16UOB-X
Regin IO-EC16UOB-X

Add:IO, 16 UOb Universal outputs (0-10V, Digital output)

UI
0
DI
0
UO
16
DO
0
E3-DSP
Regin E3-DSP

External display

Display type
Backlit, blue light, LCD, 4 rows with 20 characters
EDSP-K3
Regin EDSP-K3

3 m cable for connecting an external display

EDSP-K10
Regin EDSP-K10

10 m cable for connecting an external display

Cable length
10 m
IO-RU-7
Regin IO-RU-7

I/O module for expansion of Regin’s freely programmable EXOclever, EXOflex, EXOcompact and EXOdos controllers.

Power Supply
24VAC (20...28 V AC 50Hz / ), 2.5 VA
RS485 ports
1
Number of I/O
7
IO-RU-10
Regin IO-RU-10

I/O module for expansion of Regin’s freely programmable EXOclever, EXOflex, EXOcompact and EXOdos controllers.

RS485 ports
1
Number of I/O
10
ED-T7
Regin ED-T7

External touch screen display

Display type
7" TFT LCD
