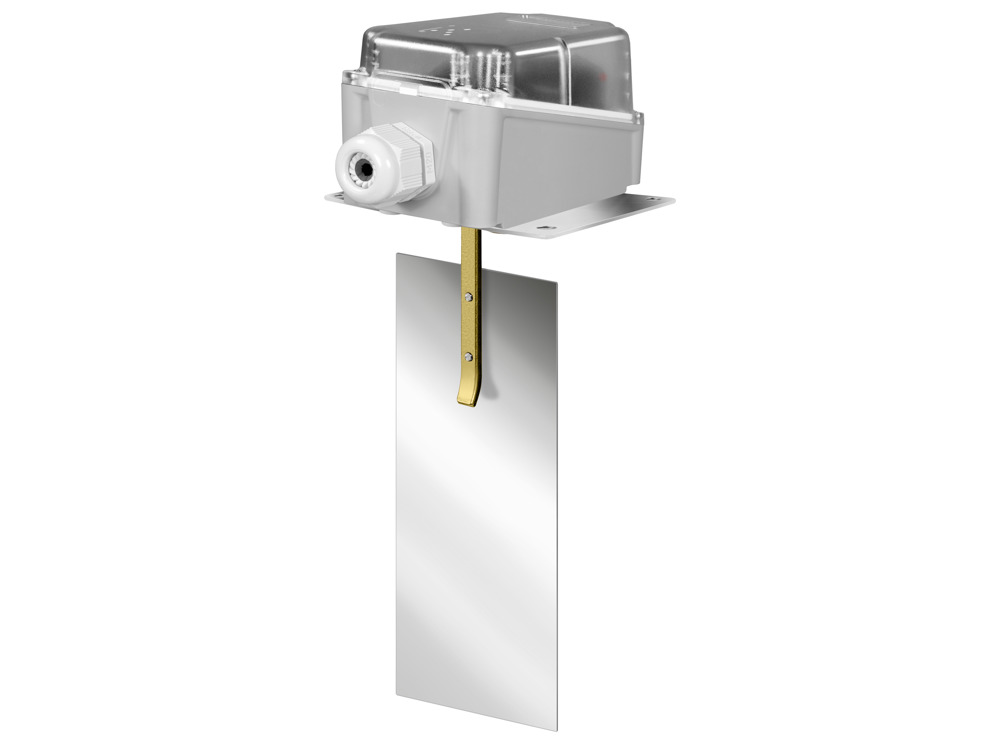

AFS1 Air flow switch
Air or non-aggressive gas flow control. Alarm signal for flow shortage. Well-suited for air ducts, air conditioning and air handling systems.
Specifications
| Setpoint value, flow rate | ... l/min |
|---|
| Appliance class | Class I |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | -40…85 °C |
| Mounting | Duct |
| Dimensions, external (WxHxD) | 265x140x100 mm |
| Weight, incl. packaging | 0.63 kg |
| Media | Air or not aggressive gases |
| Material, cover | Polycarbonate (PC) |
| Material, base | ABS |
| Material sensor | Paddles in stainless steel AISI 301 |
