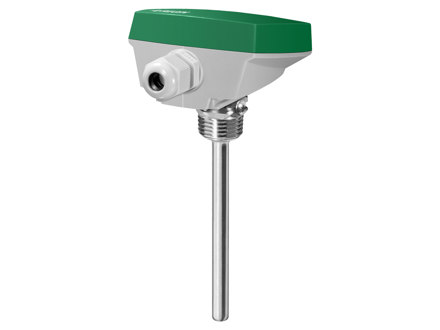

TG-DHW3/NTC10-03 Immersion sensor with housing and well
This article is discontinued
Immersion sensor
Navigate on this page
Specifications
| Sensor element | NTC 10 |
|---|---|
| Nominal resistance | 10 kΩ (25°C) |
| Insertion length | 90 mm |
| Equivalent | Andover - Delta Controls - Siebe - York |
| Protection class | IP65 |
|---|---|
| Time constant | 18s |
| Measuring range, temperature | -20…+120°C |
| Cable gland | M16 |
| Connection, well | R1/2" |
| Diameter, well | 7mm |
| Pressure rating | PN25 |
| Dimensions, external (WxHxD) | 78 x 156 x 104mm |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material, probe | Stainless steel, SUS304 |
| Material, well | Nickel-plated copper |
Software & documentation
Product sheet
Other documentation
Accessories
DR-50WA
Well in acid-proof stainless steel, for TG-IH3.
DR-90WA
Well in acid-proof stainless steel, for TG-IH3.
DR-120WA
Well in acid-proof stainless steel, for TG-IH3.
DR-170WA
Well in acid-proof stainless steel, for TG-IH3.
DR-310WA
Well in acid-proof stainless steel, for TG-IH3. Available upon request, please contact Regin for more information.
TG-DHW3-CLIP
Clip for mounting a TG-TG-IH3 on a TG-DHW well
