Regin

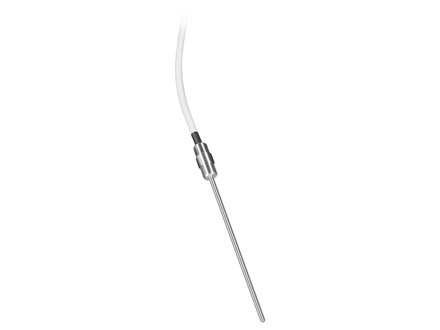

TG-D1/NTC10-02 Immersion sensor with fixed cable
This article is discontinued
Immersion sensor
Specifications
| Sensor element | NTC 10 |
|---|---|
| Nominal resistance | 10 kΩ (25°C) |
| Insertion length | 135 mm |
| Equivalent | Carel - Evco - Eliwell - AB Industrietechnik |
| Temperature range | -30…+70°C |
|---|---|
| Time constant | 4s |
| Cable length | 1.5m |
| Connection | R1/4" |
| Diameter | 4mm |
| Material, probe | Stainless steel, SUS304 |
| Pressure rating | PN10 |
| Protection class | IP65 |
