Timer with alternating relay
Timer with alternating relay
Regin

Timer with alternating relay

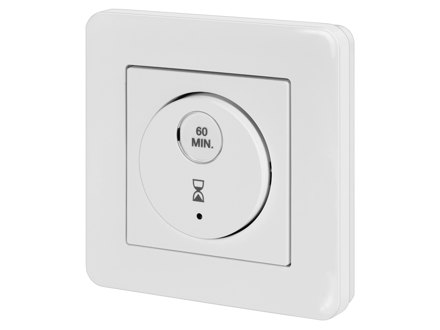

Timer for room mounting, activated when pressed. The connection time can be set to 15 min, 30 min, 1 h, 2 h, 4 h and 8 h. The timer is switched off when the set time has expired, or when the timer is pressed during the connection period.

Specifications
Software & documentation

Articles

(1 st)
  • TIM480N - Regin
    TIM480N
    Timer with alternating relay
    Voltage range
    230 V AC
    Effect
    Alternating voltage: Max. 2300 VA (resistive). Fluorescent tube load: Max. 360 VA.
    Main fuse
    Max. 10A
    Output
    Potential-free relay output
    Connection time
    15 min, 30 min, 1 h, 2 h, 4 h, 8 h

Specifications

Specifications for Timer with alternating relay
Protection class IP20
Mounting Wall
Dimensions, external (WxHxD) 71x71x25 mm

Software & documentation

Product sheet
