Regin
2-way valves
This product is discontinued
This product is discontinued

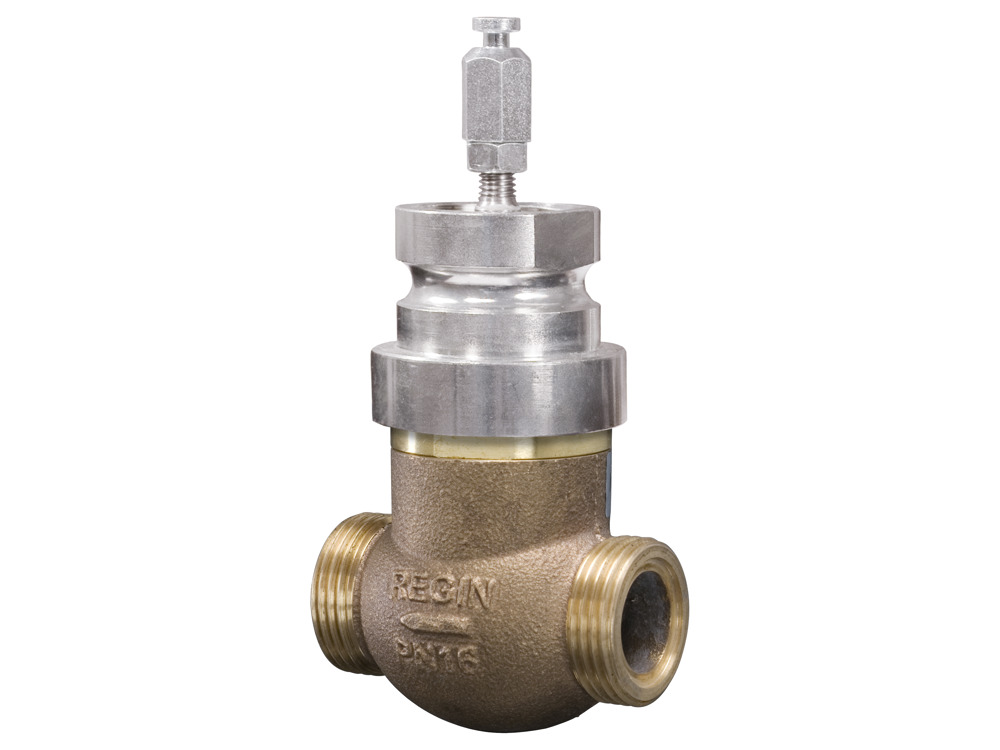

The MRT valves are designed for control of hot, cold or glycol-mixed water or steam in heating and ventilation systems. They should be used together with the RVAN5... actuators. Adapters are also available for adaptation to actuators of other brands.
Navigate on this page
Articles
(0 st)Specifications
| Pressure rating | PN16 |
|---|---|
| Connection | Male threaded |
| Flow characteristics | Equal percentage |
| Max. leakage | 0.0 % of kvs (PTFE packing with 25 % carbon, no leakage) |
| Media temperature | -5...+140°C |
| Media | Hot, cold, glycol-mixed water or steam |
| Rangeability | 100:1 |
| Stroke | 20mm |
| Max. diff. pressure | 1600kPa |
| Body | Gunmetal 1400 LG2 |
| Seat | Stainless steel X3CrNiMoN27-5-2 |
| Plug | Stainless steel 304S15 |
| Stem | Stainless steel 303S31 |
| Seat packing | PTFE with 25 % carbon |
| Packing box | Dezincification resistant brass CW 602N |
| O-rings | Viton |
Software & documentation
Product sheet
Accessories
S6321457301
Spare parts kit, packing box, for BTV valves from DN32 to DN50 (until 2018-12) and FRS valves.
