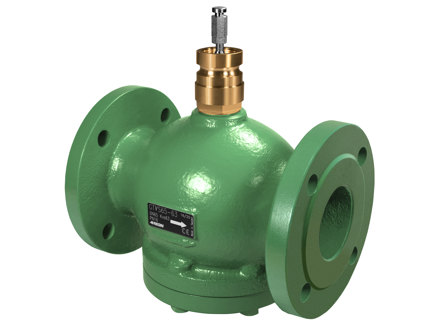

GTVS32-16 2- and 3-way control valves, DN65-150, kvs 63-310
This article is discontinued
Replaced by GF232-16
Control valves intended for use in heating and ventilation systems. The valves are intended to be used together with Regin’s RVAN actuators.
Specifications
| Nominal diameter | DN32 |
|---|---|
| Kvs | 16 m 3 /h |
| Max. diff. pressure | 1300 kPa |
| Stroke | 20 mm |
| Actuator | RVAN10 |
| Pressure rating | PN16 |
|---|---|
| Connection | Flanged according to EN 1092-2 |
| Flow characteristics | Square |
| Max. leakage | 0.1 % of kvs |
| Media temperature | -5…+120°C |
| Media | Hot water, cold water, glycol-mixed water |
| Rangeability | 50:1 |
| Body | Cast iron EN-JL 1040 |
| Seat | Gunmetal CC491K (RG5) |
| Plug | Gunmetal CC491K (RG5) |
| Stem | Stainless steel 1.4305 |
| Packing box | Dezincification resistant brass CW 602N, self-adjusting teflon |
| O-rings | Viton |
| Bonnet | Brass CW614N |
