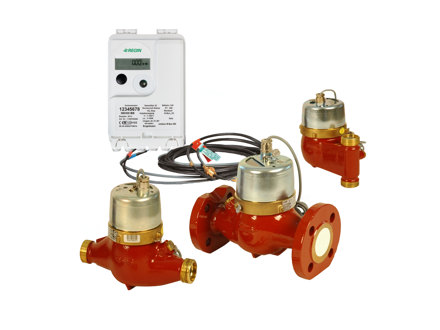

Energy meter with multi-jet flow meter
This product is discontinued
This product is discontinued
Combined energy meter for heating or cooling, consisting of a multi-jet flow meter for horizontal or vertical mounting, a pair of temperature sensors and a calculator.We offer many different options, see the MTH product sheet for more information.Note: Non-stock item.
Articles
(0 st)Specifications
| Power supply | 3 V lithium AA battery, replaceable |
|---|---|
| Temperature range | 1...150°C |
| Temperature resolution | 0.01°C |
| Ambient temperature | 5...55°C |
| Storage temperature | 5...55°C |
| Protection class | IP65 |
| Connection | Threaded according to ISO 228/1 or flanged according to EN 1092-2 (see ordering code selection table) |
| Pressure rating | PN16 |
| Media | Water |
| Mounting position | Horizontal or vertical (see ordering code selection table) |
| Cable length | 3m |
| Temperature sensors | |
| Sensor element | PT500; separately approved type as per EN60751, unshielded |
| Diameter, sensor | 6mm |
Software & documentation
Product sheet
Instructions
Accessories
Regin
TH-85-1/2
Temperature sensor pocket for installation of universal temperature sensor with 6 mm sheath diameter
- Compatible with
- q p 3.5…10 m 3 /h
- Connection A
- G½
- Installation length
- 85 mm
- Compatible with
- Qp 3,5/6,0 m³/h
- Connection A
- Rp1 1/4"
- Connection B
- G1 1/4"
- Compatible with
- Qp 3,5/6,0 m³/h
- Connection A
- G1 1/4"
- Connection B
- R1"
- Compatible with
- Qp 2,5/3,5 m³/h
- Connection A
- G1"
- Connection B
- R3/4"
- Compatible with
- Qp 10 m³/h
- Connection A
- G2"
- Connection B
- R1 1/2"
- Compatible with
- Qp 2,5/3,5 m³/h
- Connection A
- Rp1"
- Connection B
- G1"
- Compatible with
- Qp 10 m³/h
- Connection A
- Rp2"
- Connection B
- G2"
