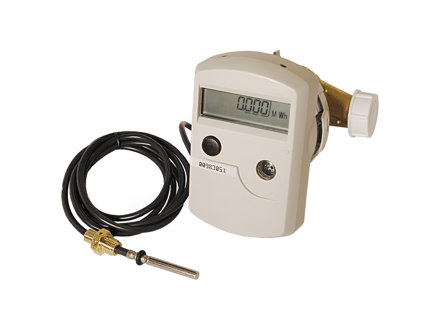

Energy meter with coaxial multi-jet turbine flow meter
This product is discontinued
This product is discontinued
Externally threaded, compact energy meters with coaxial multi-jet flow meter, intended for heating or cooling.We offer many different options, see the MSH product sheet for more information.Note: Non-stock item.
Navigate on this page
Articles
(0 st)Specifications
| Power supply | 3 V lithium battery, min. 6 + 1 years |
|---|---|
| Temperature range | 1...150°C |
| Temperature resolution | 0.01°C |
| Ambient temperature | 5...55°C |
| Storage temperature | -20…+60°C |
| Protection class | IP54 |
| Connection | Threaded according to ISO 228/1 |
| Pressure rating | PN16 |
| Media | Water |
| Mounting position | Horizontal or vertical |
| Cable length | 1.5m |
| Sensor element | PT500; separately approved type as per EN60751, unshielded |
| Diameter, sensor | 5mm |
Accessories
Brass threaded fitting with coupling ring and gasket
Brass threaded fitting with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with coupling ring and gasket
Ball valve with installation point for a temperature sensor (sockets M10x1)
Ball valve with installation point for a temperature sensor (sockets M10x1)
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece
Threaded fit
Threaded fit
Optocoupler with USB interface
Software device monitor
