Regin

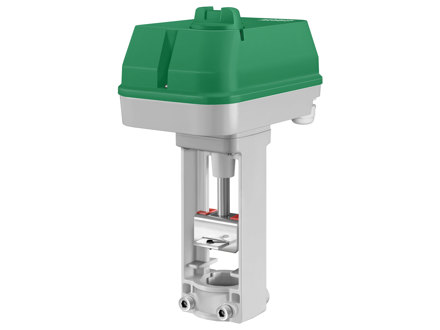

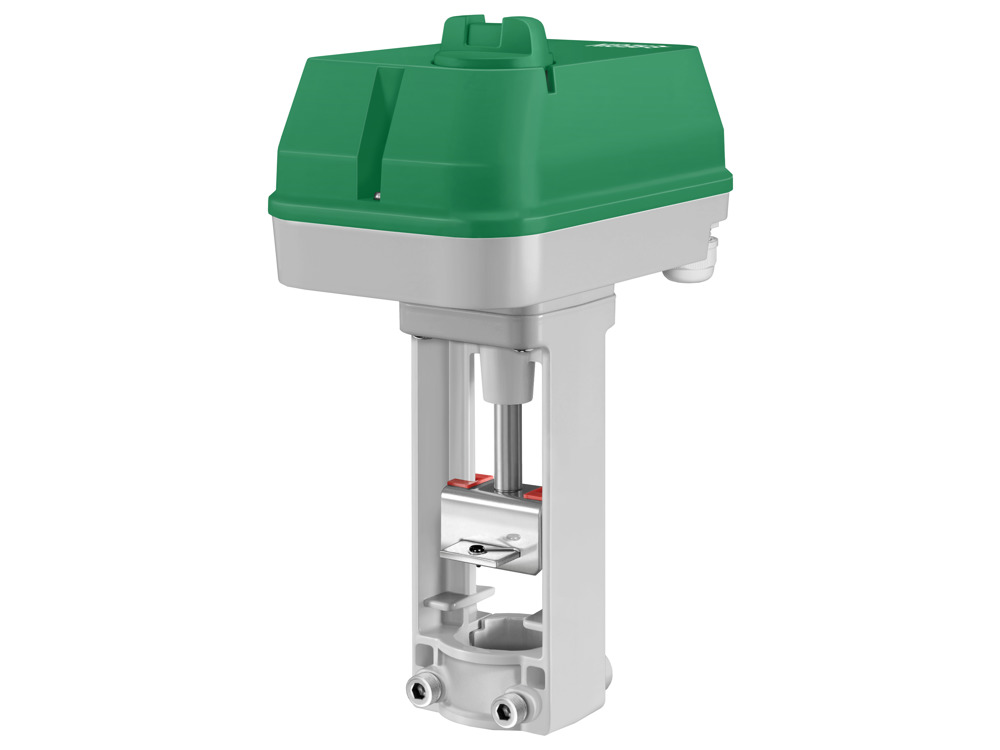

RVAN25-24A Valve actuators, 500-2500 N, 24 V supply voltage and 0(2)...10 V DC control
Valve actuator
Specifications
| Force | 2500 N |
|---|---|
| Supply voltage | 24 V AC/DC |
| Power consumption | 8.6 W / 22.4 VA |
| Control signal | 0(2)…10 V DC or 0(4)…20 mA |
| Feedback signal | 0...10 V DC |
| Stroke length | 10…52 mm, 52 mm |
| Speed | 3 s/mm |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…80 °C |
| Connection towards valve | Standard RVAN |
Software & documentation
Product sheet
Instructions
Accessories
Industrietechnik
02133005
Washer for actuator, 3 mm thick with ø14 mm hole. For RVAN5 and RVAN10 on DN50-65 GF-valves.
