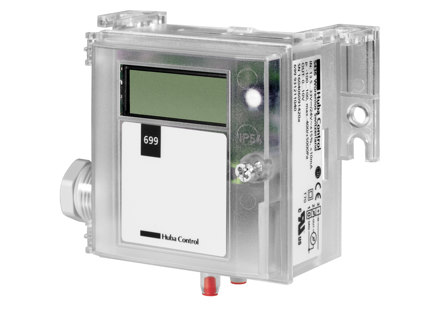

Differential pressure transmitter for air

This product is discontinued

This product is discontinued

Transmitter for differential pressure measurement of air and non-corrosive gases in air handling units, etc. A common application area is pressure control in ventilation systems.


(0 st)


Specifications for Differential pressure transmitter for air
Supply voltage 21…27 V AC or 18…33 V DC. (4…20 mA only 18…33 V DC)
Measuring range -30…+30 Pa / -50…+50 Pa / -100…+100 Pa
Ambient temperature 0…70°C
Protection class IP54
Accuracy, linearity < ±1.0 % full scale
Accuracy, hysteresis < ±1.0 % full scale
Accessories, included Two pressure outlets (straight) and 2 m plastic tube. Art. no.: ANS-20
