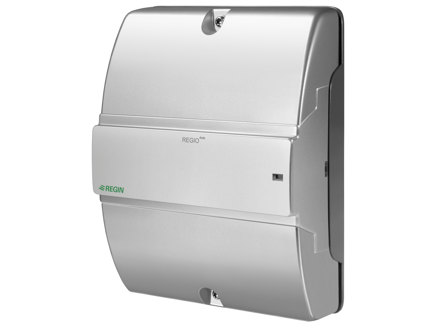

Regio Ardo
Regio Ardo is a configurable 24 V zone controller. One controller is able to control two different zones.
It is quick and easy to commission. The I/O configuration and application setup for a VAV controlled room are predefined and the room units ED-RU are easily connected.
The controller is compatible with other Regin products and can easily be integrated into larger systems.
The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.
It is quick and easy to commission. The I/O configuration and application setup for a VAV controlled room are predefined and the room units ED-RU are easily connected.
The controller is compatible with other Regin products and can easily be integrated into larger systems.
The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.
Navigate on this page
Articles
(1 st)-
RC-A203W-4-TP- Number of modules
- 8.5
- RS485 ports
- 2
- Ethernet ports
- 1
- Display ports
- 1
- AI
- 4
- DI
- 4
- CI
- 2
- AO
- 4
- DO
- 6
Specifications
| Power Supply | 24VAC (20...28 V AC 50/60Hz / ), 4.0 VA |
|---|---|
| Battery life time | 5 years |
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Ambient temp | 0…50 °C |
| Storage temp | -20…70 °C |
| Mounting | Wall |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
EDSP-K3
3 m cable for connecting an external display
ED-RUD
Flush-mounted room unit intended for use as a display for more advanced controllers.
E-CABLE2-USB
Cable for USB connection
EDSP-SPLIT
Cable splitter for connecting two display units to one controller
KG-A/1
Condensation detector for Regio controllers, 1 m cable length
