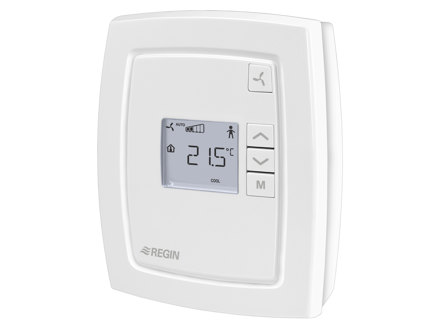

Fan-coil controller for thermal or 3-point actuators
Electronic fan-coil controllers for room temperature control with PI controller. Automatic or manual change-over between heating and cooling. The controllers have a function for 3-speed fan control (for fan-coil), a built-in temperature sensor, backlit display, and an input for a window contact or an occupancy detector. RCF-230TD, RCF-230CTD and RCF-230CTD-EC also have a function for control of an electric heater.
RCF-230CD*, RFC-230CAD*, RCF-230CTD* and RCF230CTD-EC* are BTL listed, click here to go to the BACnet International website where you'll find PICS documents and more information.
RCF-230CD*, RFC-230CAD*, RCF-230CTD* and RCF230CTD-EC* are BTL listed, click here to go to the BACnet International website where you'll find PICS documents and more information.
Navigate on this page
Articles
(0 st)Specifications
| Supply voltage | 230 V AC ±10 %, 50/60 Hz |
|---|---|
| Power consumption | < 3 VA |
| Setpoint | 5...35°C |
| P-band | 10°C |
| Hysteresis | ±0.5 K |
| I-time | 300 s |
| Digital outputs (DO) | Three relay outputs for fan control, 230 V AC, 3 A / Two triac outputs for valve actuators, 230 V AC, 300 mA |
| Analogue inputs (AI) | One PT1000 |
| Digital inputs (DI) | One closing potential-free contact |
| Universal inputs (UI) | One PT1000 or closing potential-free contact |
| Mounting | Room |
| Protection class | IP20 |
