Relay module

Relay module

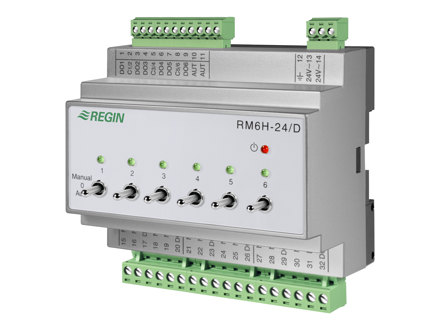

Relay module with six relays, intended for use together with Regin’s Corrigo, EXOcompact and Exigo controllers. The relay module can be used for control of objects with higher voltage loads or larger current drain than the controller outputs can handle. RM6H-24/D has manual switches for manual control of each object.

Specifications

Articles

(2 st)
  • RM6-24/D - Regin
    RM6-24/D
    Relay module
    Number of modules
    6
  • RM6H-24/D - Regin
    RM6H-24/D
    Relay module with manual switches
    Number of modules
    6

Specifications

Specifications for Relay module
Power Supply 24VAC (20...28 V AC 50Hz / ), 5.0 VA
Protection class IP20
Ambient humidity (non-condensing) 0…90 % RH
Ambient temp 0…50 °C
Mounting DIN-rail
