Regin

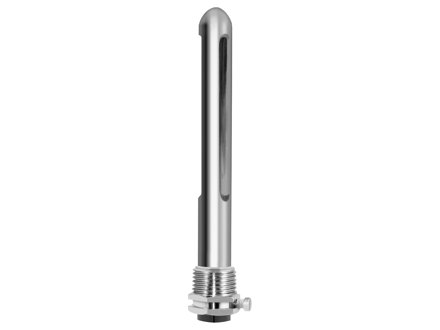

DR-40/14 Wells and mounting brackets for thermostats

Brass pocket 108 mm, Ø external 16 mm, Ø internal 15 mm, connection R 1/2”

Specifications

Specifications for DR-40/14
Tube length 108 mm
Total well length 128 mm
External tube diameter 16 mm
Internal tube diameter 15 mm
Connection R 1/2"
Well material Brass / Cu-Ni
Fixing stopper for capillary Yes
Specifications for Wells and mounting brackets for thermostats
